KINOV Motor
1 / 5
| Ratio | 3.4K - 5184K |
|---|---|
| Max. Rated Torque | 0.5~120Kgf.cm |
| Max. Gear Breaked Torque | 180 Kgf.cm |
| Gearbox Efficiency | 45%~95% |
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | N.m / Kgf.cm | |||
| GM25AMBL2430-217K | 1 : 217 | 12 VDC | 18 | ≤ 120 | 15 | ≤ 200 | 0.45 / 4.5 | ≤ 950 | 0.21 / 2.1 |
| GM37BMBL3657-113QK | 1 : 113 | 24 VDC | 58 | ≤ 400 | 48.5 | ≤ 1400 | 3.0 / 30 | ≤ 7000 | 10 / 100 |
| GMP36MBL3640-27K | 1 : 27 | 24 VDC | 185 | ≤ 300 | 150 | ≤ 750 | 0.45 / 4.5 | ≤ 3000 | 2.25 / 22.5 |
| GMP42MBL4260-325K | 1 : 245 | 24 VDC | 10 | ≤ 300 | 8 | ≤ 1200 | 6N.M / 60KG.CM | ≤ 4800 | 20 / 200 |

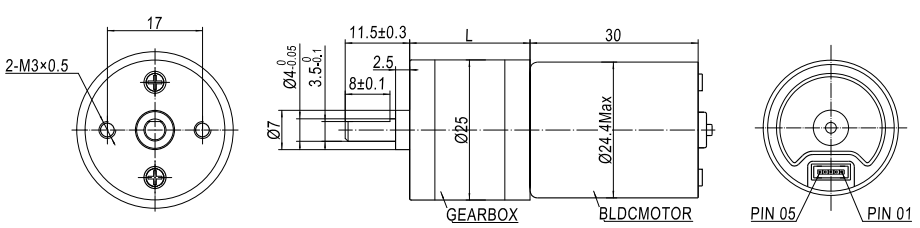

GM25 Motor Type

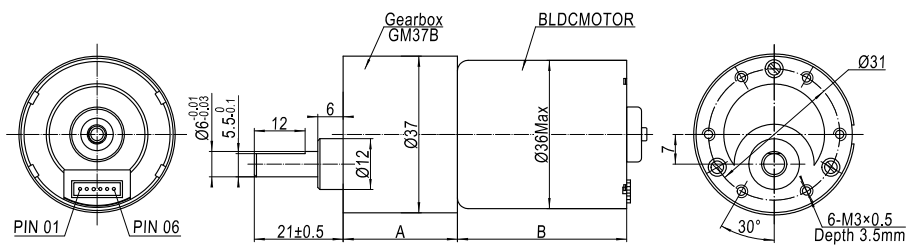

GM37 Motor Type

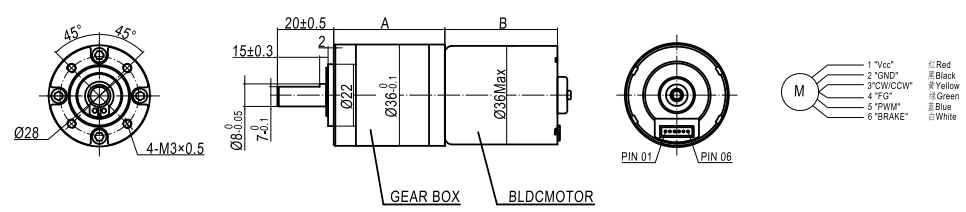

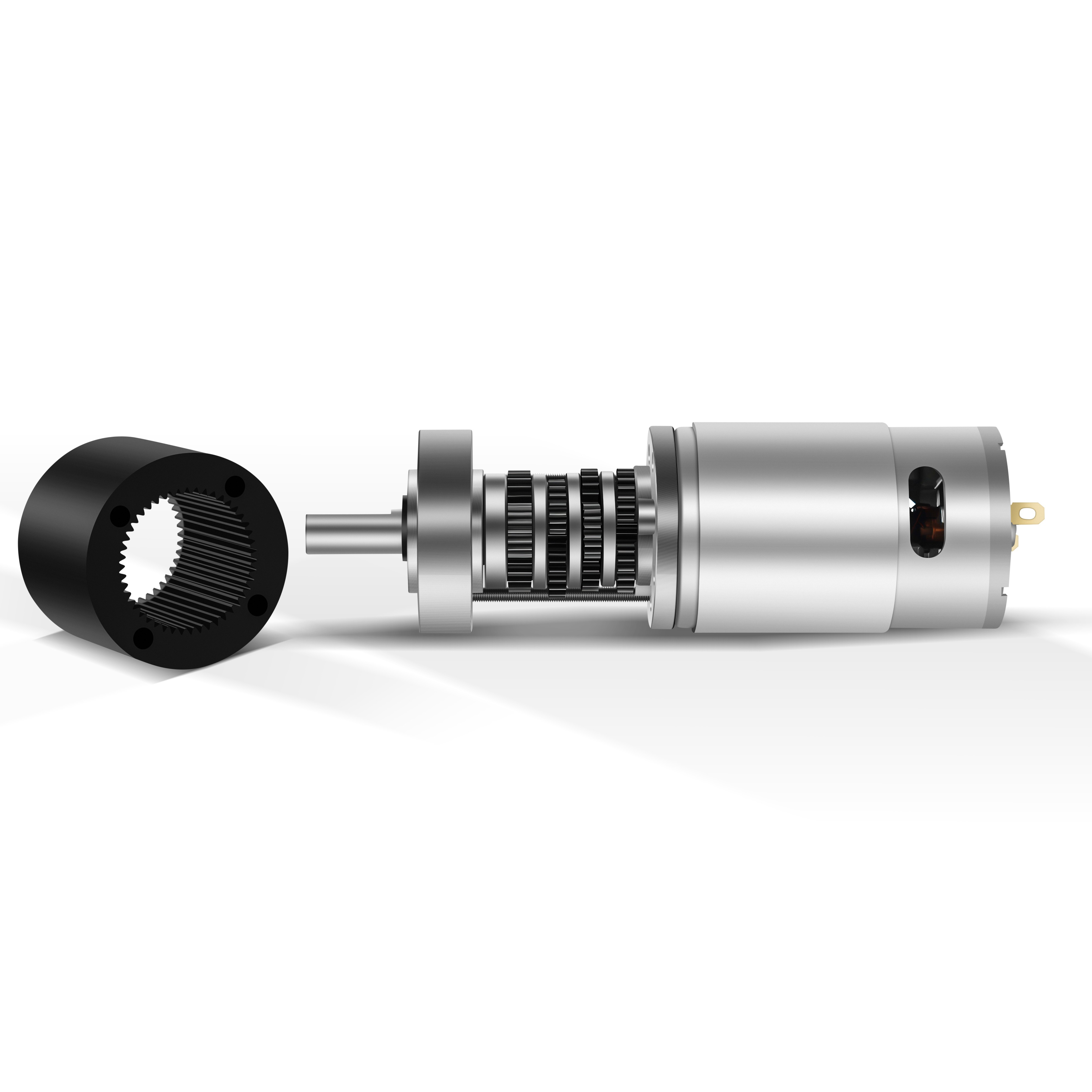

GMP36 Planetary Gear Motor Type

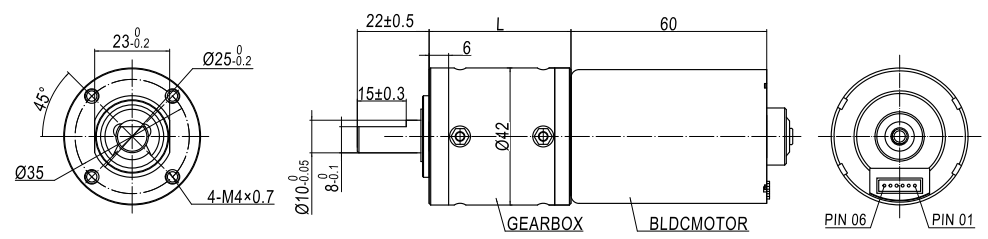

GMP42 Planetary Gear Motor Type
Established in 2005, the enterprise is a high-tech manufacturer integrating the research, development, production and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shaded pole geared motors and special gearbox motors. Products are widely used in automobiles, communications equipment, smart home solutions, medical equipment, intelligent security systems, household appliances, commercial kitchen equipment, and other high-end transmission structures. The products are exported to more than 50 countries and regions worldwide.
In order to confirm quality, every step of the process is carefully checked from receiving raw materials to final shipment. Quality is the core foundation of our development.
Gold seller status in possession of high credibility.
100% on-time delivery rate to confirm your products arrive timely.
Standard samples produced within 2 weeks. Customized samples produced within 3 weeks.
Timely response with professional technical support within 2 hours.
We are a professional factory specializing in micro DC motors and DC gear motors with over 14 years of design and manufacturing experience.
We can set up an online Trade Assurance Order, which allows payments via Credit Card (Mastercard, Visa, etc.). We also accept PayPal, T/T, and other common payment methods.
Yes, we provide full customization services to tailor motor specifications, dimensions, and gearboxes according to your specific requirements.
Yes, our motors are certified with CE, FCC, ISO, and other relevant compliance standards. We can also apply for additional certifications if required by your region.

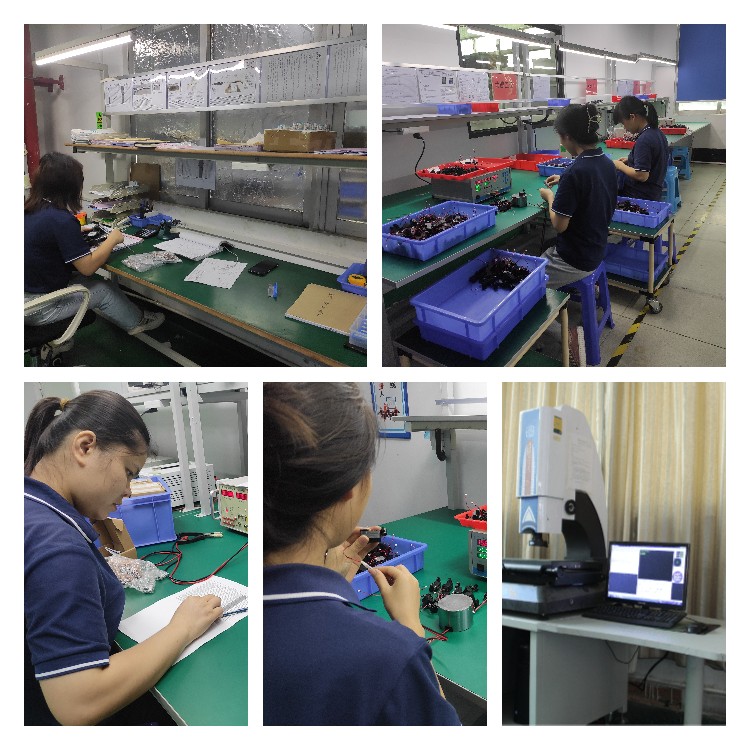

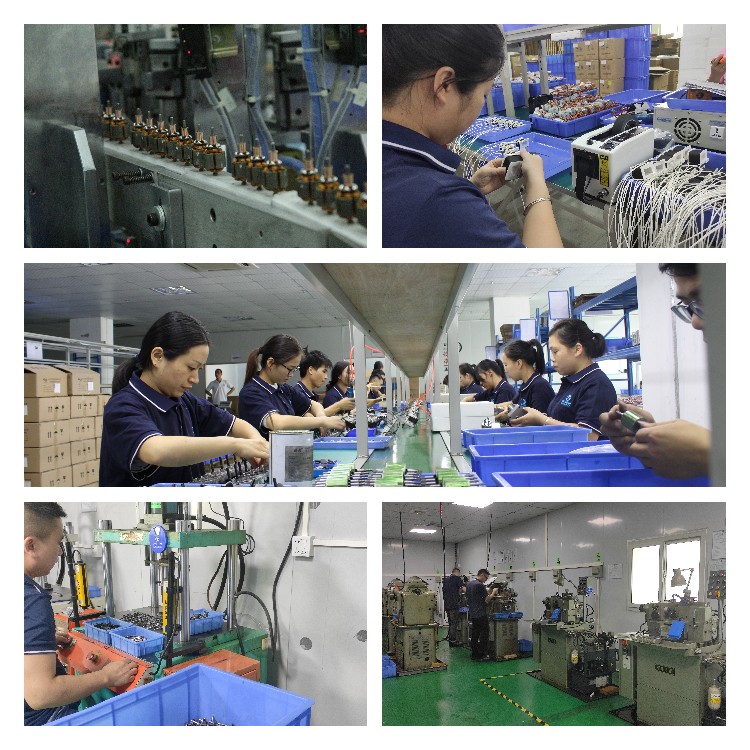

We have dedicated QA inspectors at every stage of the production line. Fully assembled motors undergo testing with specialized quality inspection machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Typically, standard bulk orders are processed within 3 to 4 weeks depending on the order volume and customization complexity. Initial sample testing is highly recommended before bulk production.
