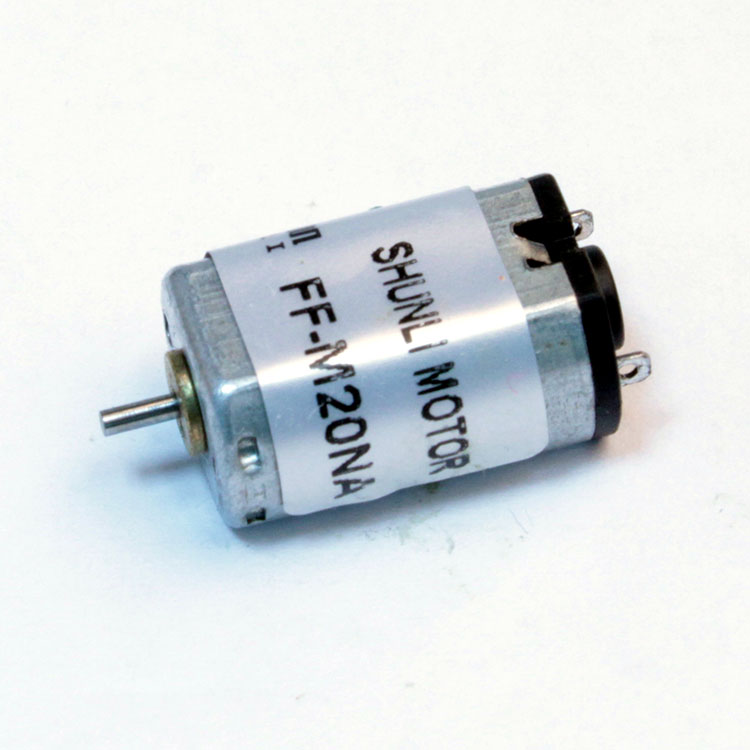

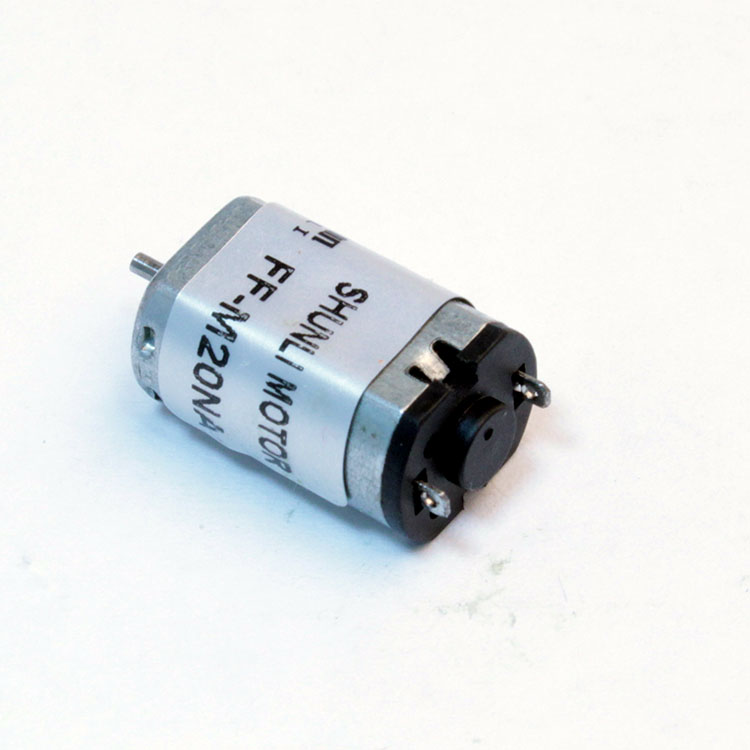

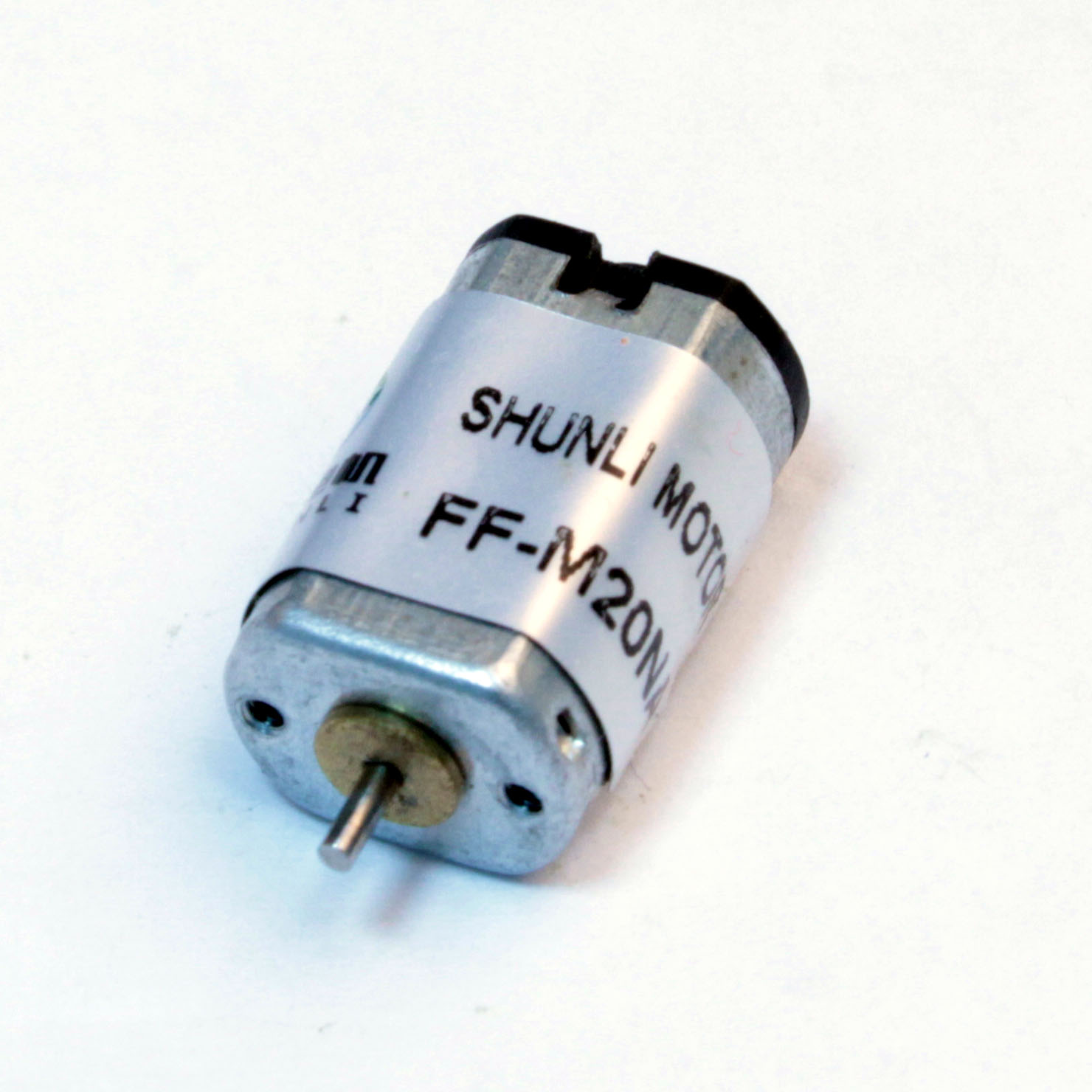

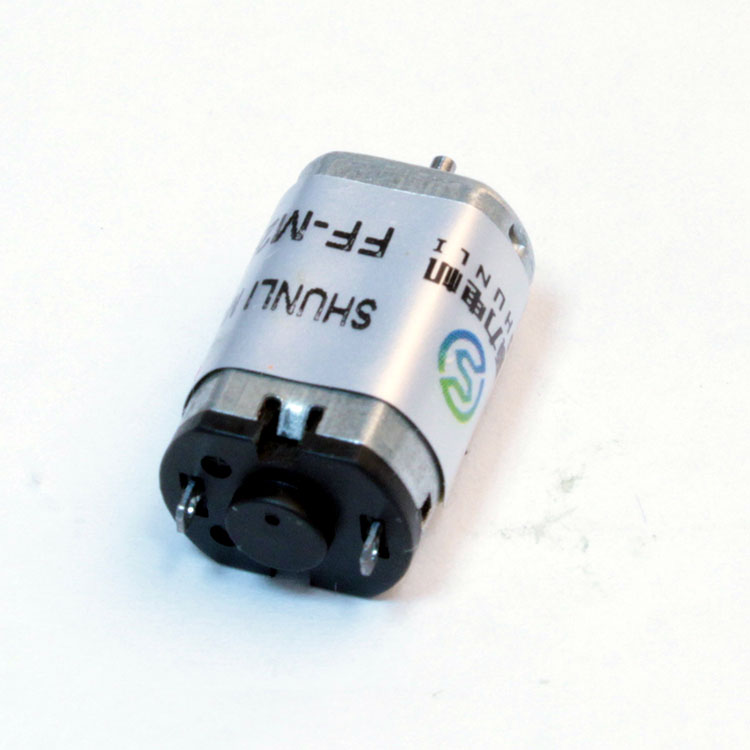

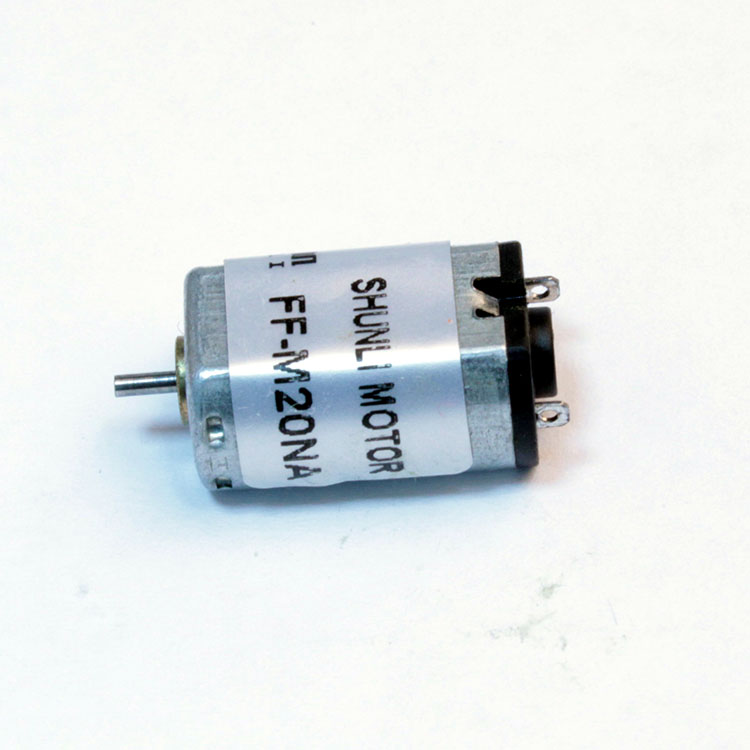

Small Electric Motor M20 Dc Motor 1.5v 3v Micro Dc Motor for home appliance

Promotion

Product Description

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	mA	RPM	mA	mN.m / gf.cm	W	mA	mN.m / gf.cm
FF-M20VA	8130	2.0~3.0	3VDC	15200	45	11800	160	0.16/1.6	0.19	550	0.69/7
	7170	1.5-3.0	2VDC	8000	25	6000	75	0.09/0.9	0.06	230	0.35/3.6
	10100	1.5~4.0	2.8VDC	18000	50	14800	190	0.2/2	0.3	880	1.1/11

Click on the tilt font to know more parameters!

Application

Our Company

Established in 2005, the high-tech enterprise integrates the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.

Production Process

Certifications

We have introduced dozens of advanced production equipment and testing instruments from Germany, Japan, Switzerland and other countries to strictly control the quality of each motor.

FAQ

1. Are you a trading company or manufacturer?

We are a factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2. What is the payment term for new customers?

We can draw up an Ali Assurance Order Online for our new customers, which can be paid online with MasterCard, Visa, etc. Customers can also pay via PayPal, TT, etc.

3. I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's requirements.

4. Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.

5. How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we have entire quality machines to test the motor, such as a Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester, etc.
