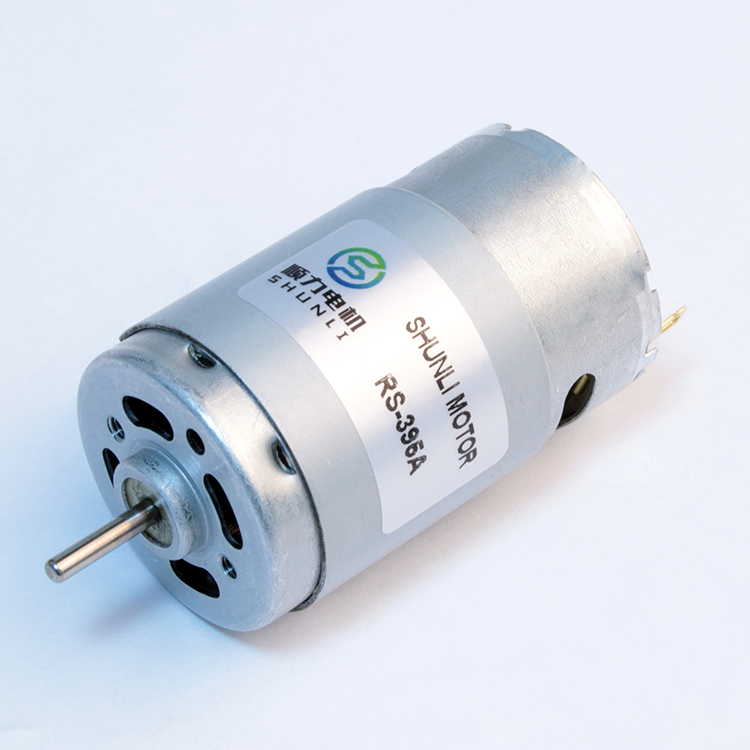

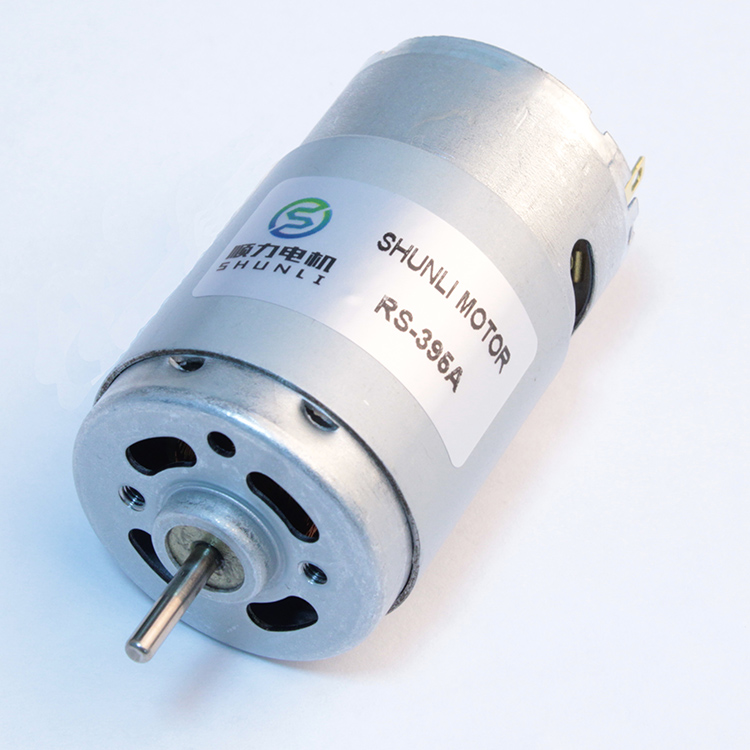

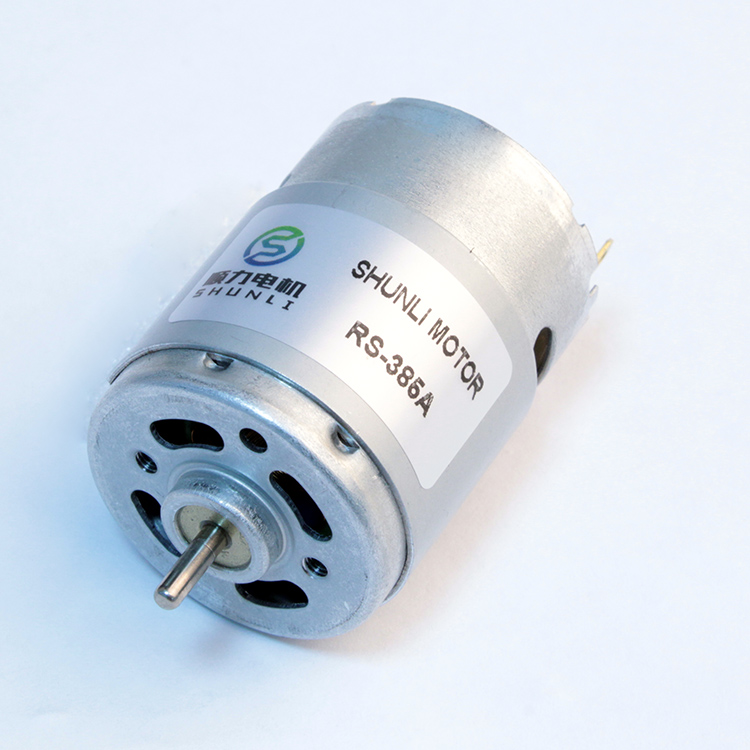

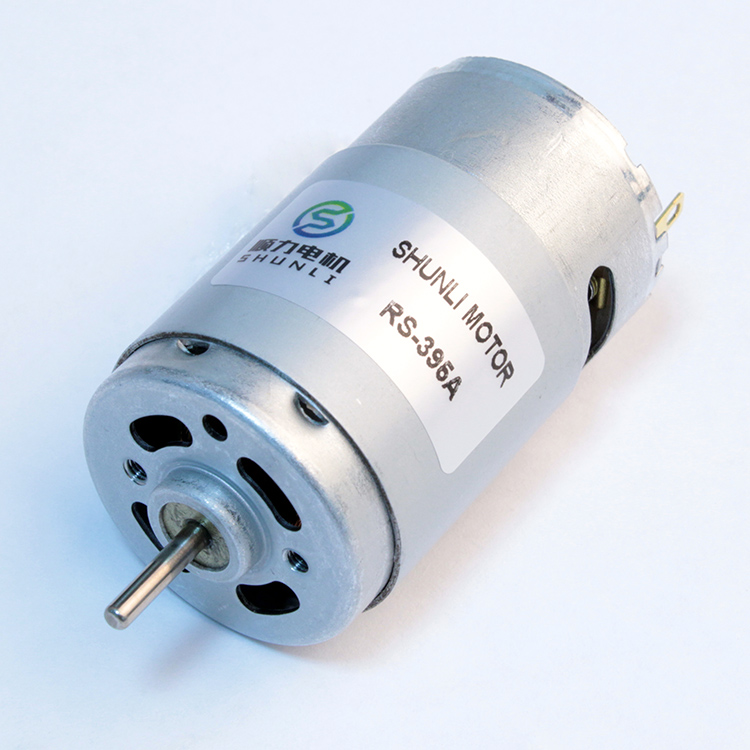

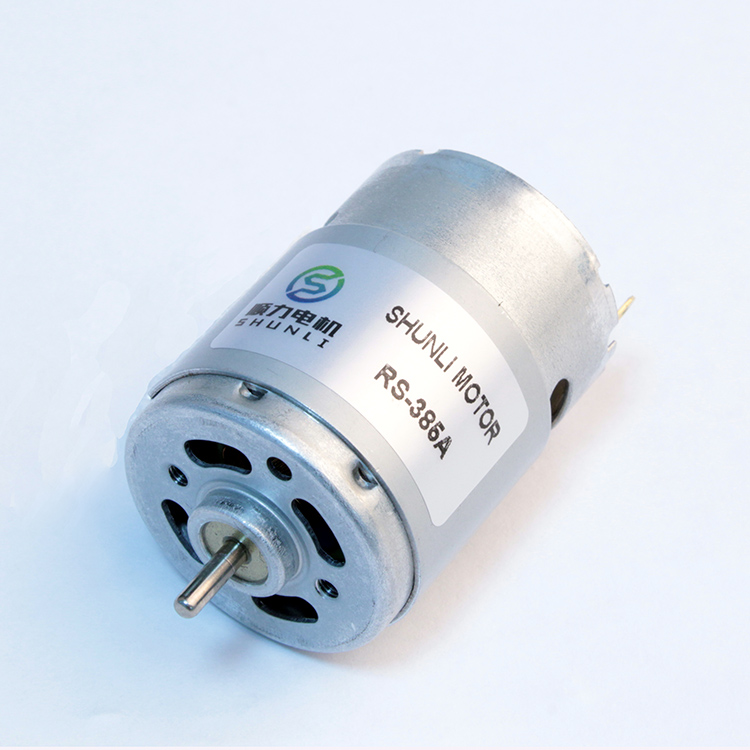

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

1 / 5

390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor

Send Inquiry

Product Description

390 Dc Motor for Machine Fan 12v 6000rpm Motor

Product Description

390 DC Motor for Machine Fan 12V 6000RPM Motor

Product Details

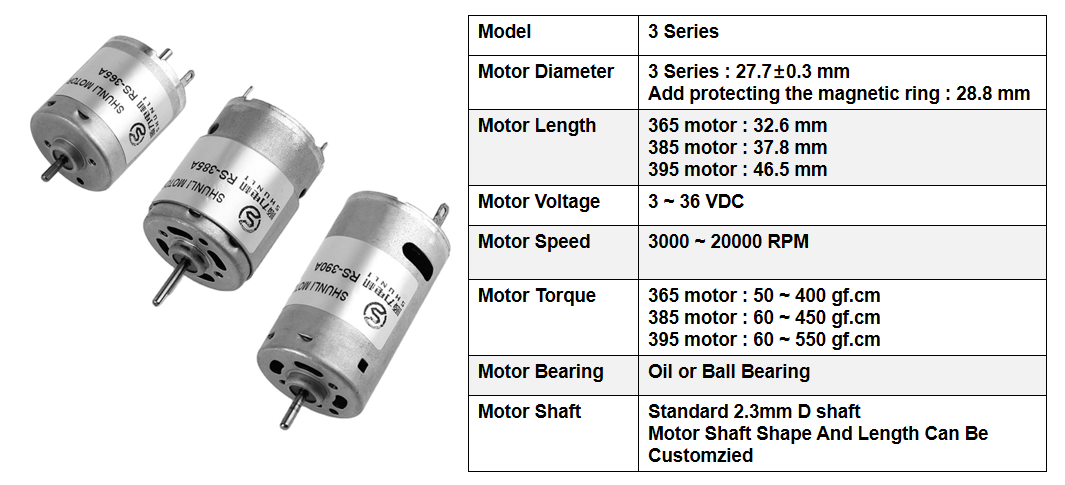

390 Dc Motor Dimensions and Specifications

Motor Customized Specification, Please contact us.

Reference Drawing

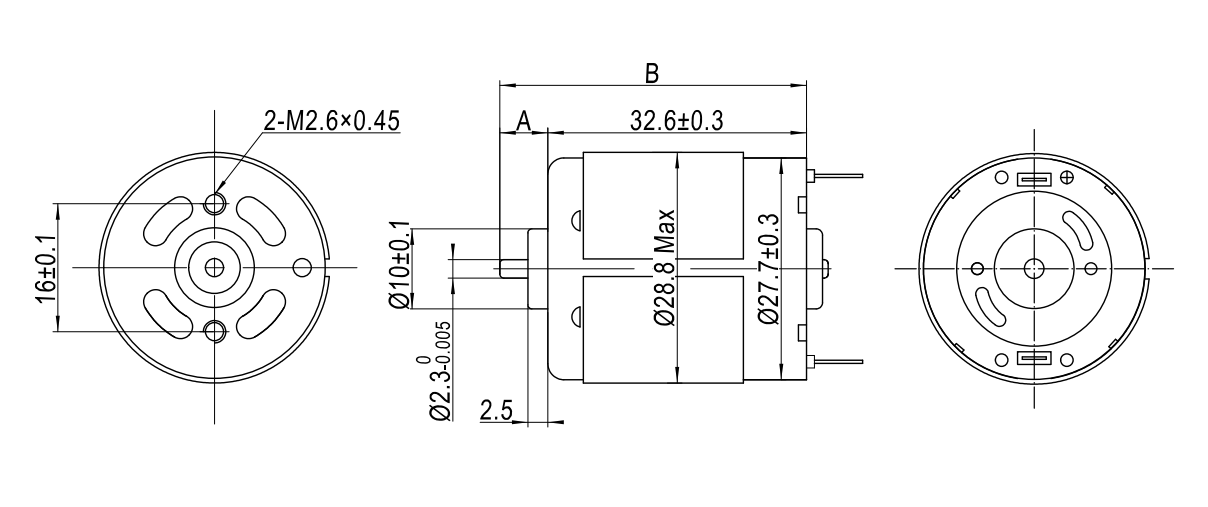

Model: RS - 365

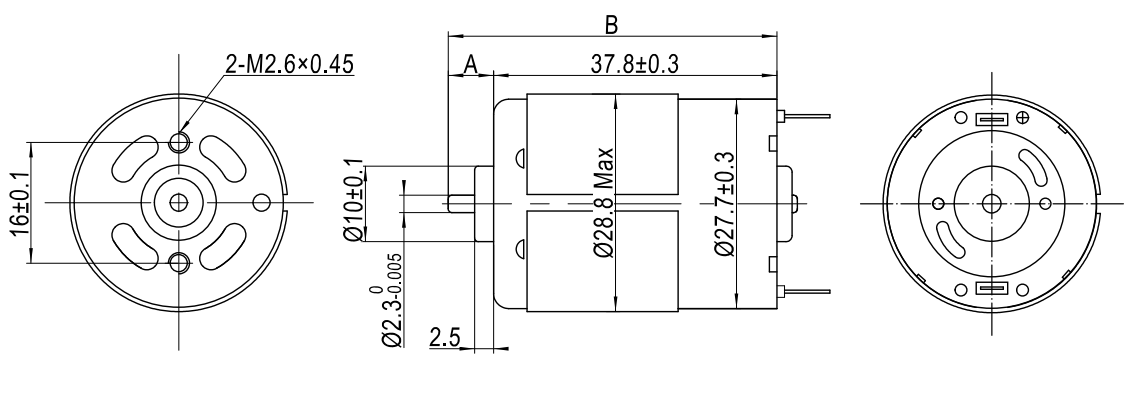

Model: RS - 385

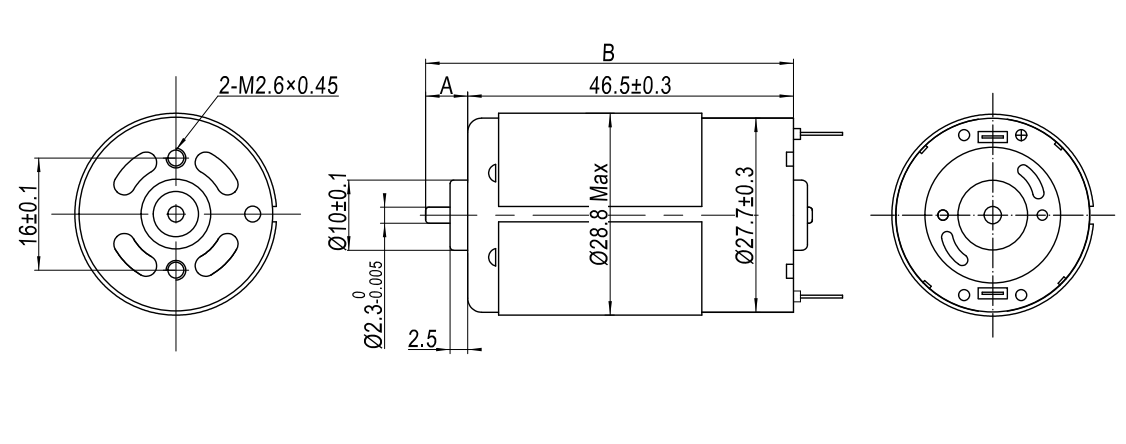

Model: RS - 395

The length of shaft can be customized, Please contact us.

Reference Datasheet

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-390SH	20156R	6.0~12.0	12VDC	5000	0.08	4243	0.33	6.07/61.9	2.72	2.22	42.2/430
RS-390SH	2975	6.0~12.0	12VDC	12000	0.29	10165	0.33	5.75/58.6	1.31	8.9	80.4/820
RS-395SH	15130	6.0~12.0	12VDC	3650	0.66	2949	0.25	5.83/59.5	1.8	1.06	30.4/310
RS-395SH	15100R	6.0~24.0	24VDC	10300	0.07	8893	0.38	7.09/72.3	6.68	2.66	54.9/560

Product Showcase

Give us a chance to cooperate with you!

Cooperation and Quality Assurance Banner

Frequently Asked Questions

QWhat is the main application of the 390 DC motor?

The 390 DC motor is primarily designed for high-efficiency machine fans, household appliances, smart devices, and customized miniature mechanical applications requiring stable high-speed performance.

QCan the shaft length of the 390 DC motor be customized?

Yes. We support custom shaft dimensions and lengths to match your structural design requirements. Please contact us with your detailed technical drawing parameters.

QWhat are the nominal voltage options for the RS-390 and RS-395 series?

The nominal operating voltages typically range from 6V DC to 24V DC. Standard options include 12V configurations capable of reaching speeds up to 12000 RPM depending on the model.

QHow do I choose between the RS-390SH and RS-395SH models?

The choice depends on your specific speed, current, and torque requirements. The RS-390SH offers excellent power output for compact configurations, while the RS-395SH supports wider operating voltage ranges up to 24V with optimized torque profiles. Refer to our Technical Datasheet for exact comparisons.

QDo you provide customized electric specifications for these motors?

Absolutely. In addition to physical dimensions, we can adjust the internal windings to customize parameters such as voltage, RPM, torque, and current draw to meet your project specifications.
