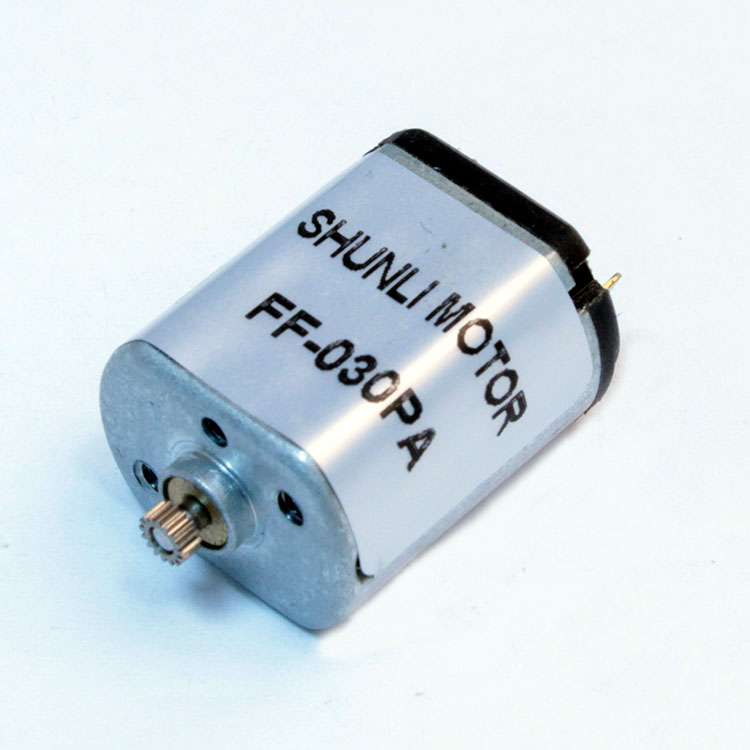

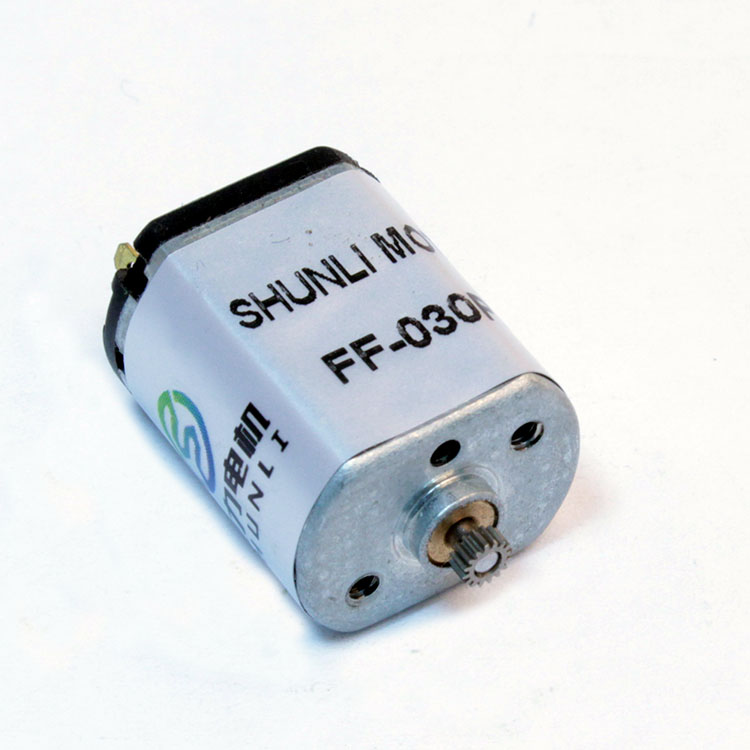

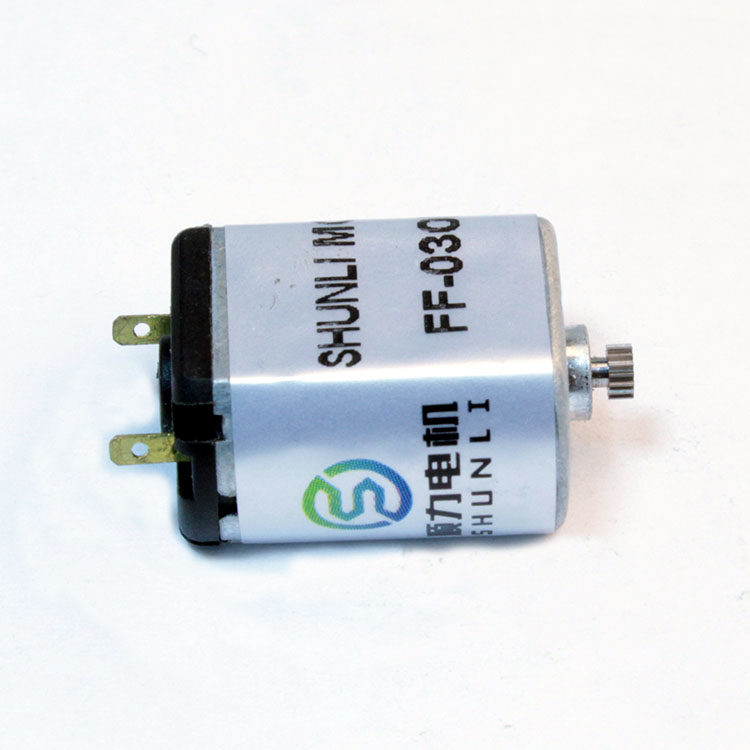

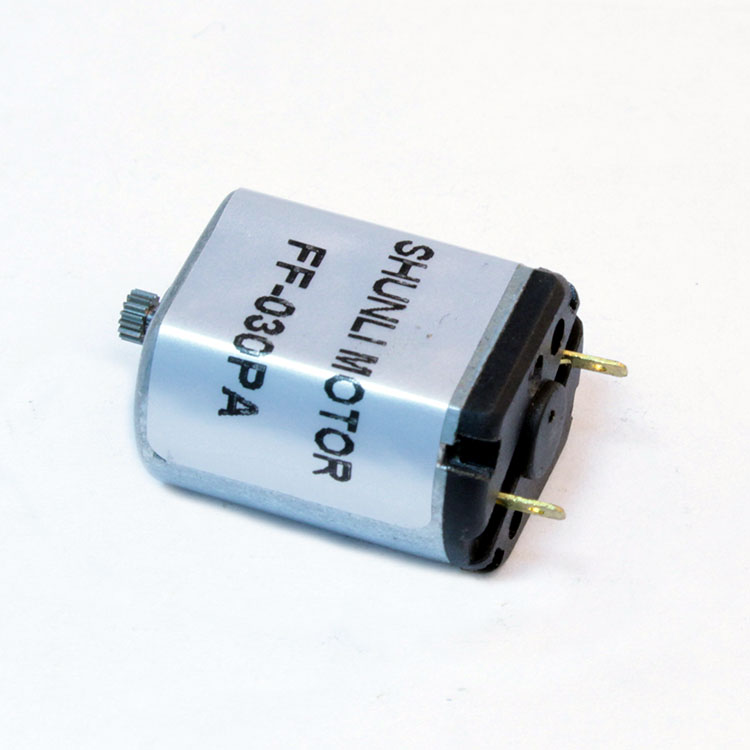

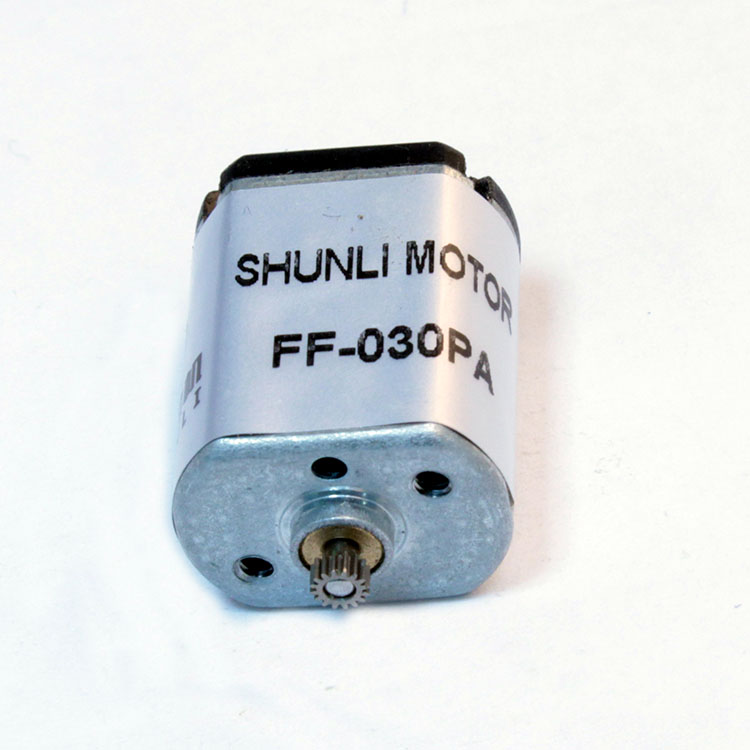

Mini 1.5v 9v 12v Dc Motor 14000 Rpm 20000rpm for Micro Fan Can Match Counter Weight

Product Highlight

Mini 1.5v 9v 12v DC motor with speeds ranging from 14000 RPM to 20000 RPM, designed specifically for micro fans, and can be customized with counter weights.

Product Description

PMDC MOTOR Technical Data
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	mA	RPM	mA	mN.m / gf.cm	W	mA	mN.m / gf.cm
FF-030PA	11155	2.0~4.0	3VDC	7200	45	5500	170	0.49/5	0.28	590	2.06/21
FF-030PA	1592	2.0~4.0	3.5VDC	14300	90	12500	300	0.49/5	0.64	2000	3.92/40
FF-030PK	05440	3.5~12.0	12VDC	11000	20	7800	65	0.49/5	0.4	180	1.67/17

Technical Note: Custom parameters are available. Please refer to the parameters above to match your specific configuration.

Application

These mini DC motors are designed for high efficiency and versatility. Perfect for applications such as micro fans, portable fans, cooling systems, and minor appliances.

Company Profile

Established in 2005, this high-tech enterprise integrates the research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. The products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics, and other high-end transmission structures. Products are exported to more than 50 countries and regions.

Production Process

Certifications & Quality Control

Dozens of advanced production equipment and testing instruments imported from Germany, Japan, Switzerland, and other countries are utilized to strictly control the quality of each motor.

Frequently Asked Questions

Are you a trading company or a manufacturer?

We are a professional factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.

What is the payment term for new customers?

We accept secure online transactions supporting Visa, Mastercard, and other major credit cards, as well as payment via PayPal or T/T wire transfer.

I cannot find a suitable motor on your website, can you customize it for me?

Yes, we can customize parameters, dimensions, and other specifications of the motor according to our customers' specific requirements.

Do you have certificates for your motors?

Yes, we have CE, FCC, ISO, and standard safety certifications. If you need other specific certificates, we can apply for them for you.

How is your Quality Control managed?

We have professional QC inspectors at every stage of the production line. Fully assembled motors are tested using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Testing Machines, and Noise Testers.

What are the primary applications of these mini motors?

Our micro DC motors are widely applied in smart home appliances, micro cooling fans, medical devices, automotive systems, and intelligent security equipment.
