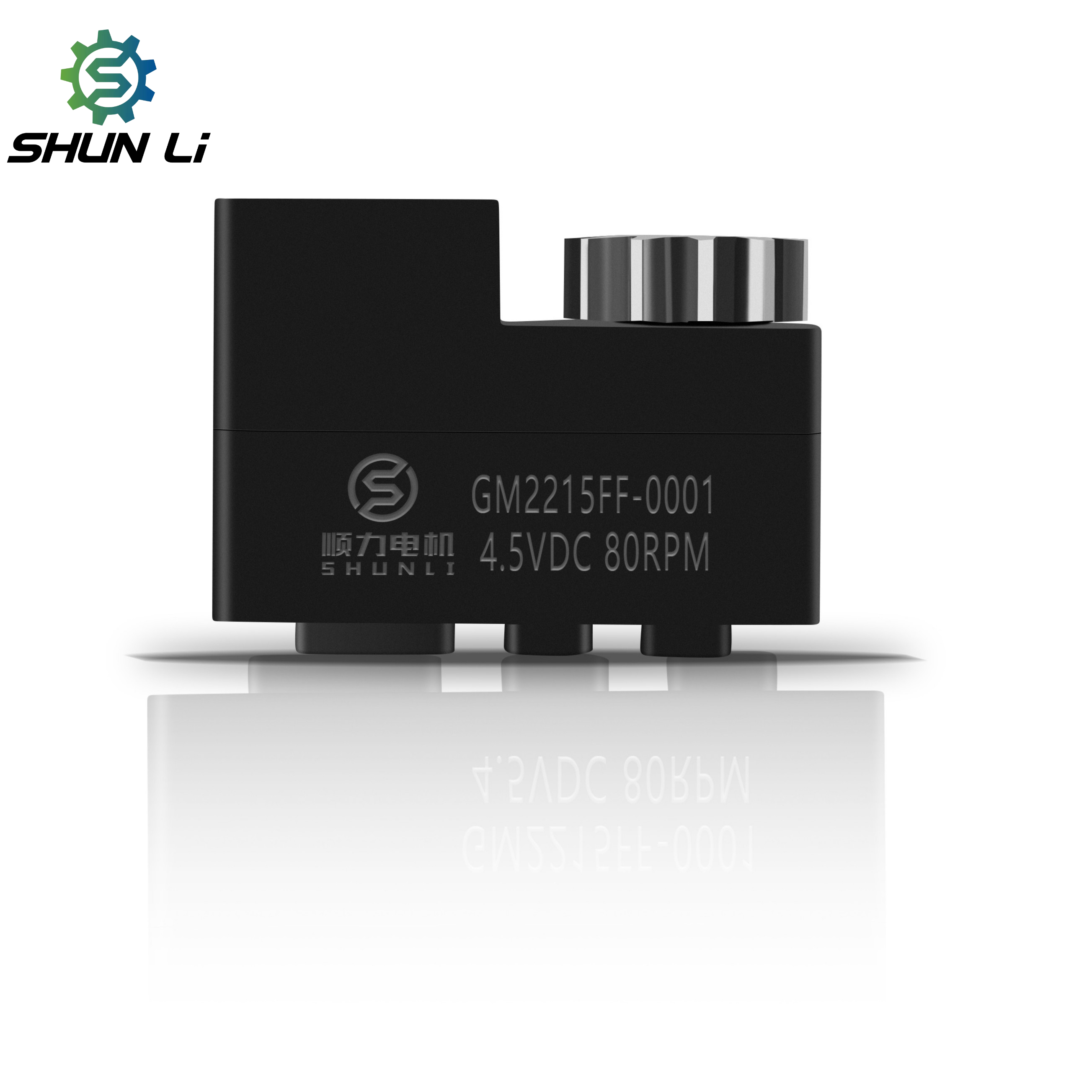

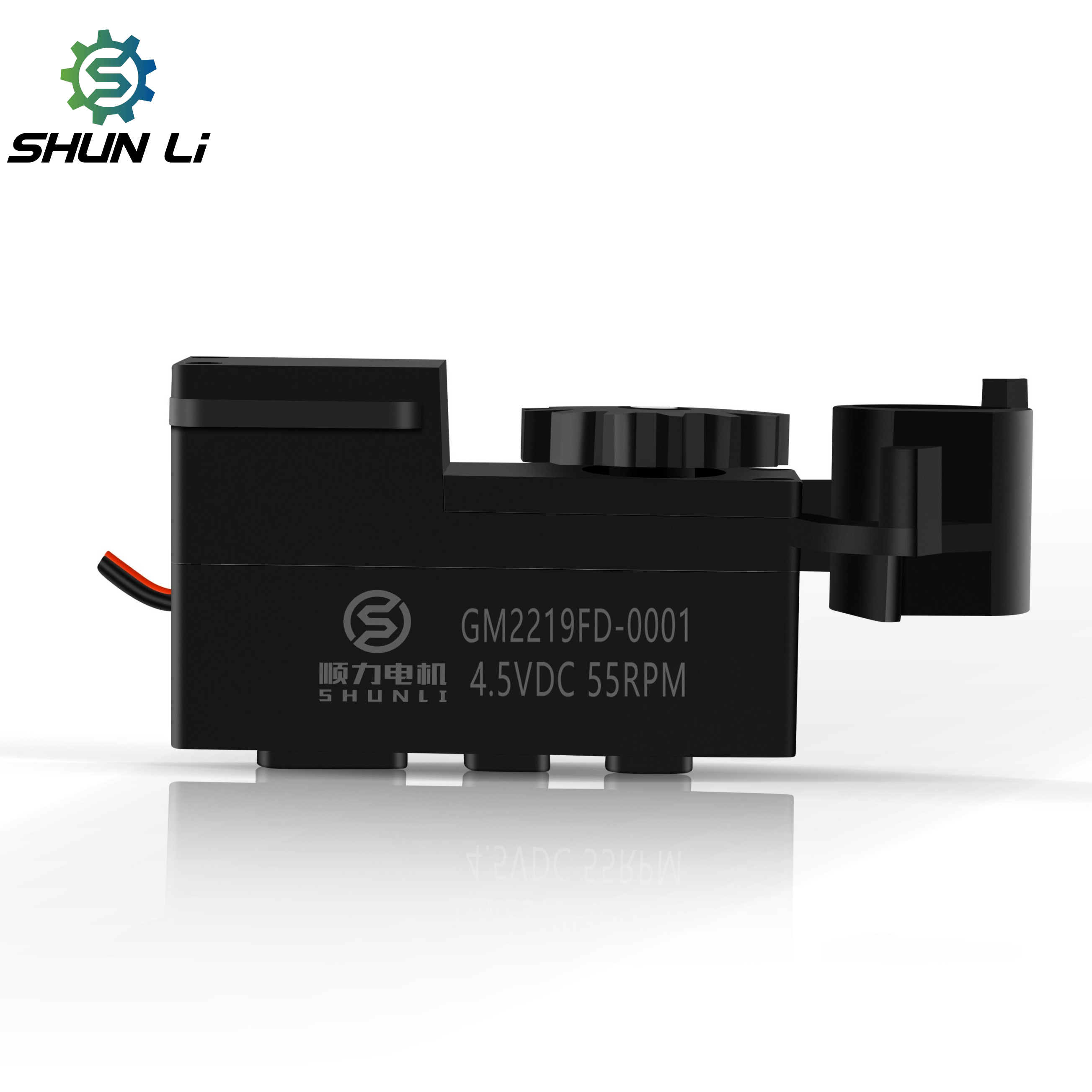

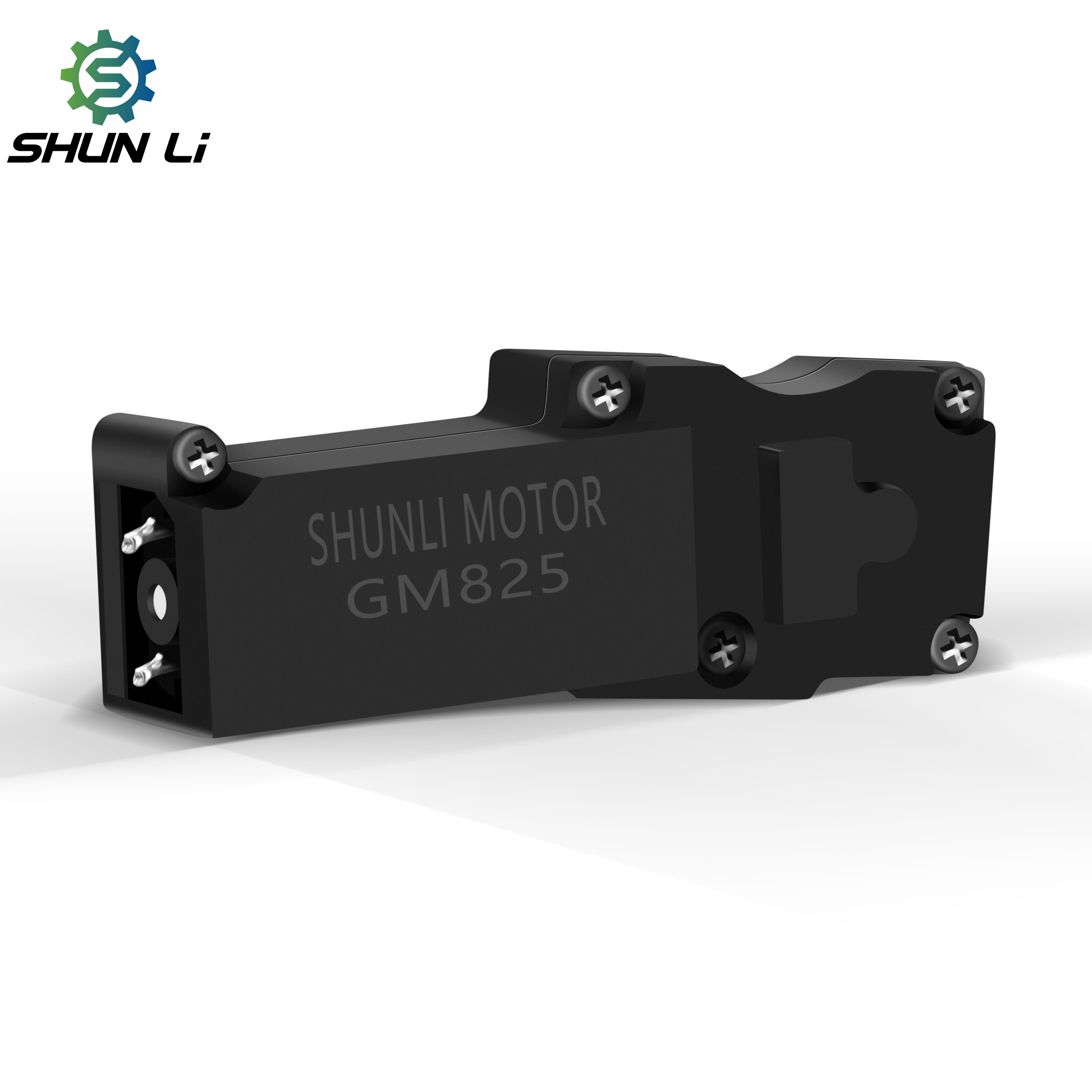

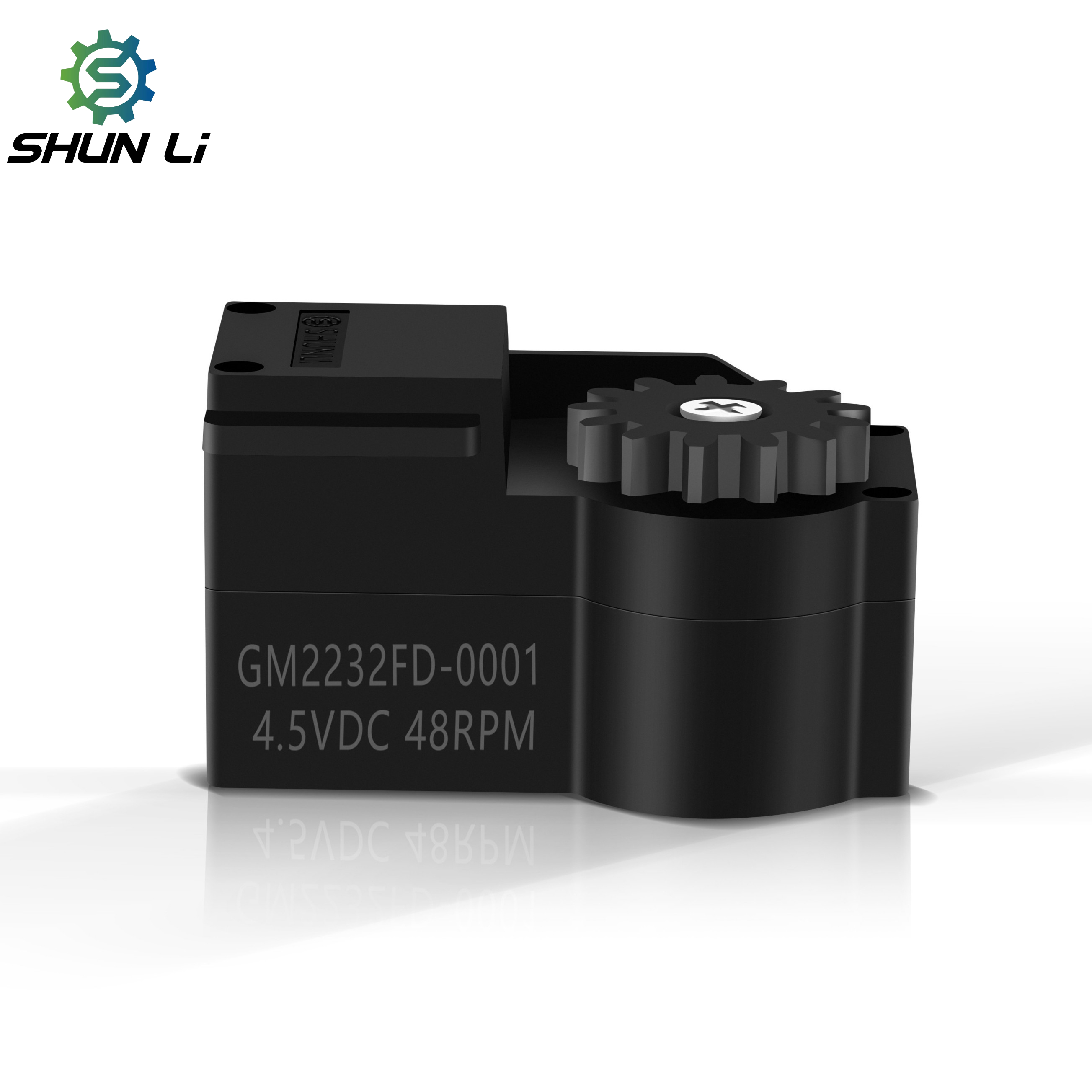

4.5v DC Motor with Gearbox,dc Gear Motor for Door Lock

Product Description

Product Presentation

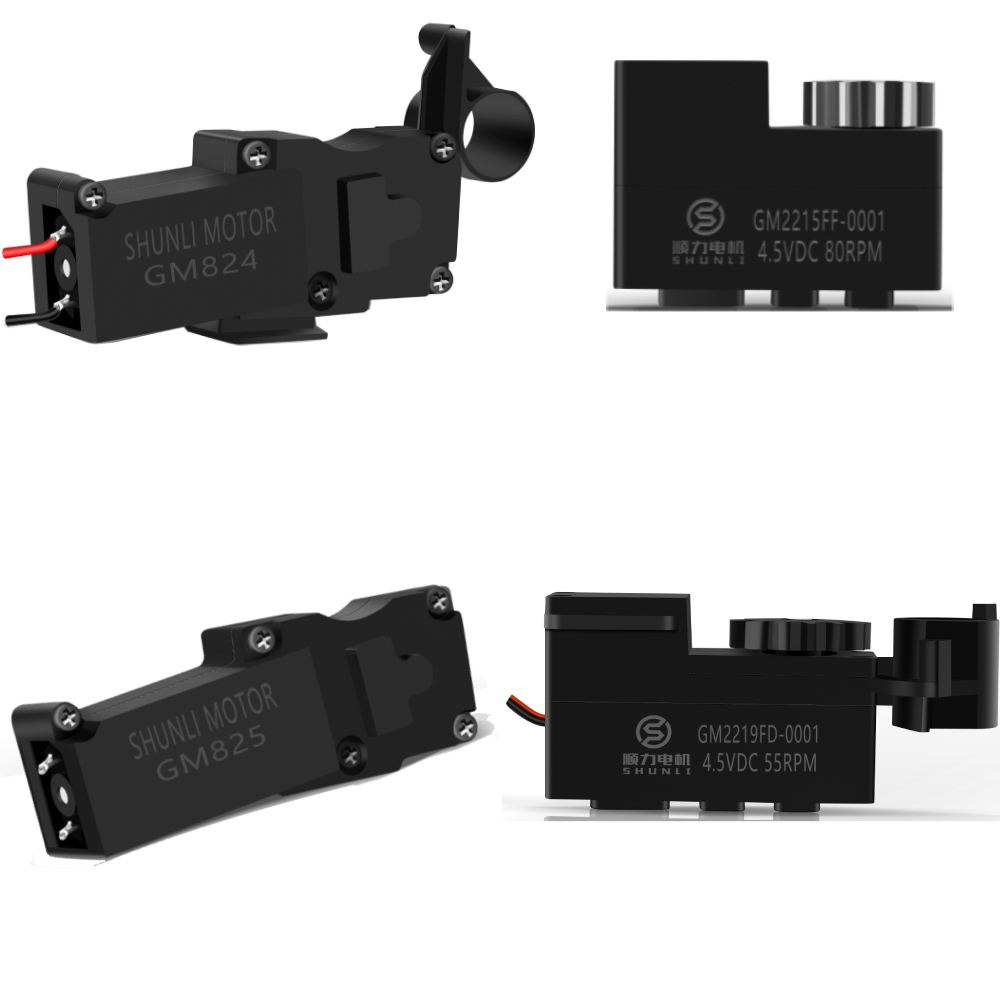

Smart Lock Motor Details
Product Model Smart Lock Motor
Gearbox Size Width: 10mm
Length: 7mm
Dimensions of DC Motor M10 Length: 12.5mm
M20 Length: 15mm
Speed 40RPM - 100RPM
Voltage 1.5V - 6V
Torque 0.5KG.CM Max
Motor Shaft Standard: 1mm plastic shaft
Custom dimensions & materials available
Support Customization Transmission configuration and motor parameters are fully customizable

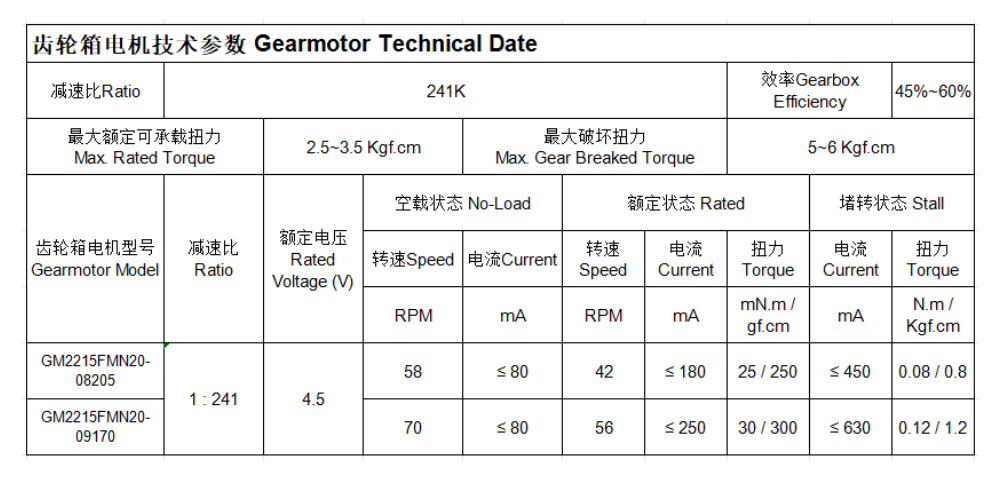

Technical Specifications and Drawing
Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A: We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of manufacturing experience.

Q2: What is the payment term for new customers?

A: We can draw up an online assurance order for our new customers, which allows payment via credit cards (Mastercard, Visa, etc.), PayPal, or T/T.

Q3: I cannot find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor configured directly to our customers' application and parameter requirements.

Q4: Do you hold certifications for your motor products?

A: Yes, our products are certified with CE, FCC, ISO, and other relevant standard credentials. If you require specialized testing or other certificates, we can apply for them.

Q5: How is your product quality control managed?

A: We employ professional QC inspectors at every phase of the assembly process. Every completed motor undergoes strict diagnostic verification using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Chambers, and Noise Testers.

Q6: What is the typical lead time for production and custom orders?

A: The average lead time ranges from 15 to 30 days depending on the final design layout, customization demands, and order quantity. We provide accurate schedules upon parameter confirmation.
