| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 / 826.2 | 111.8 | 115 | 666.9 / 6802 |

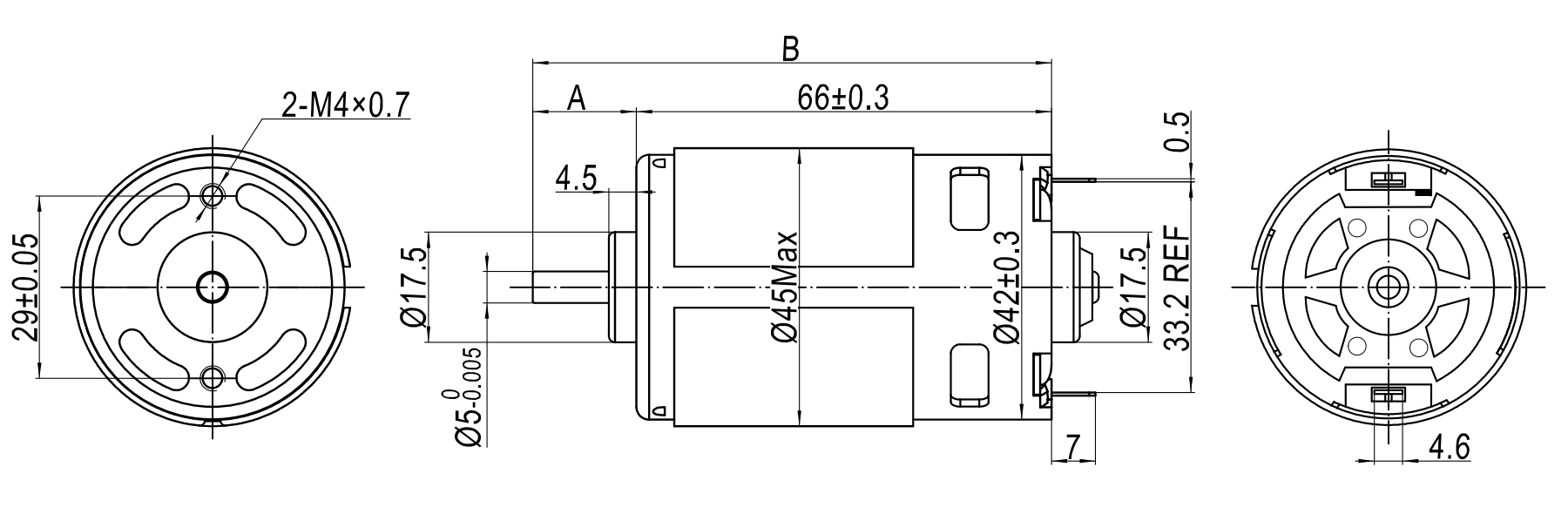

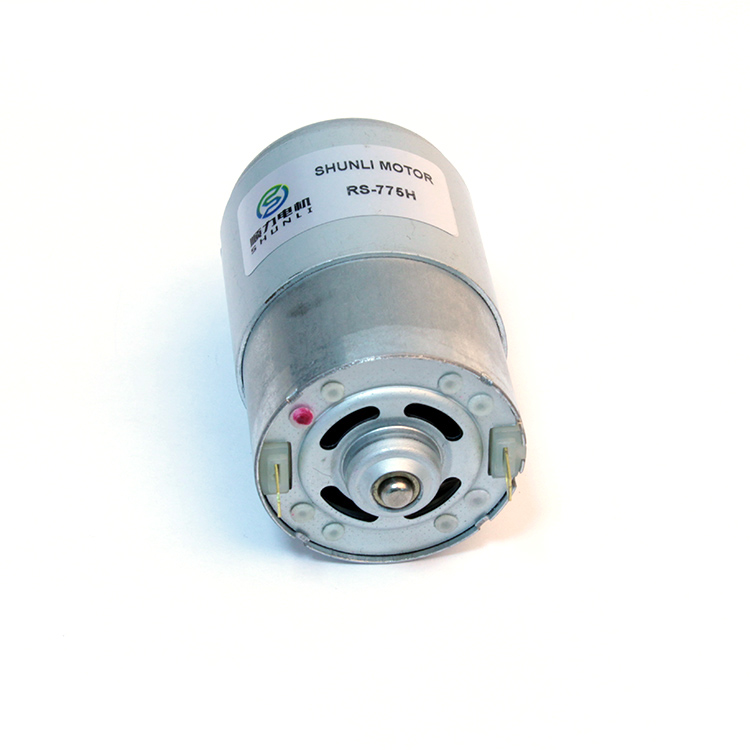

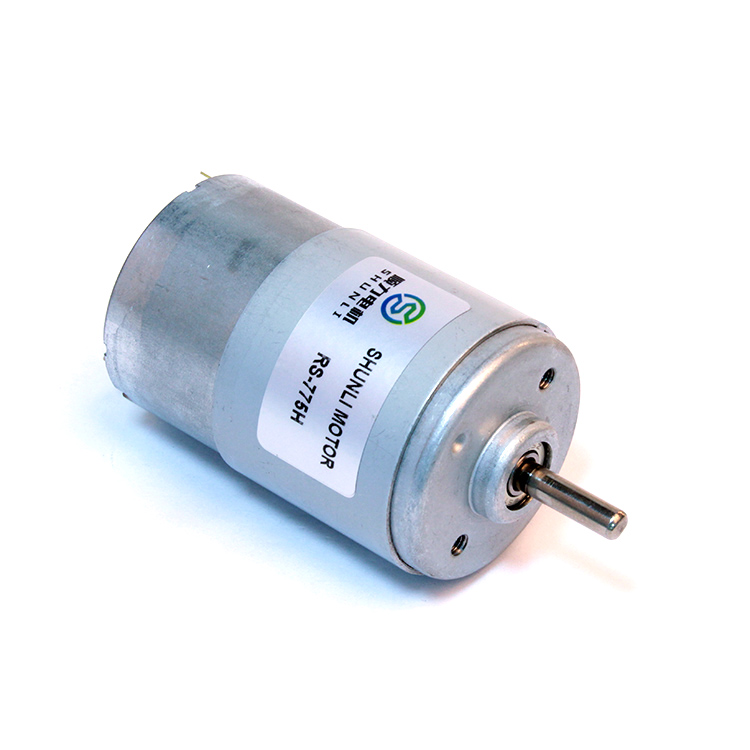

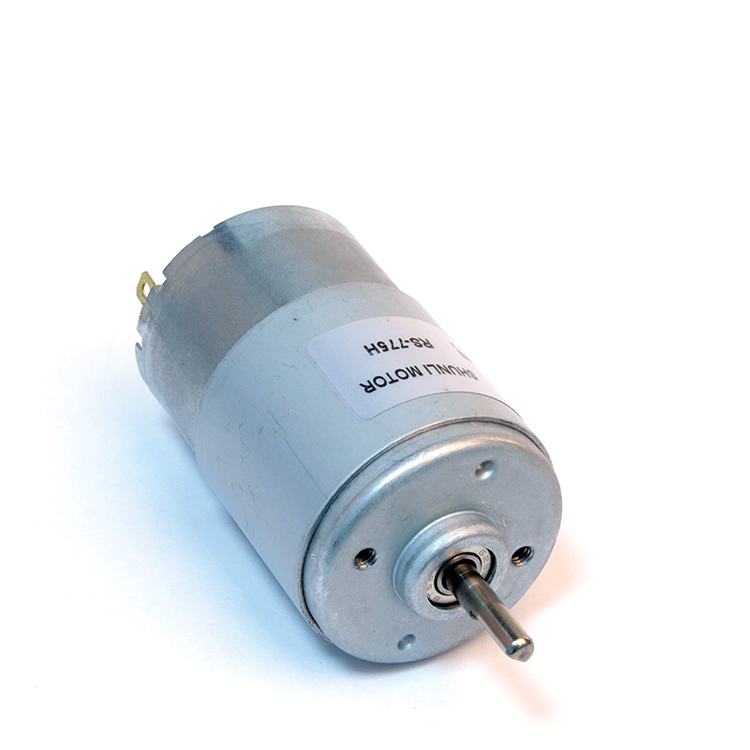

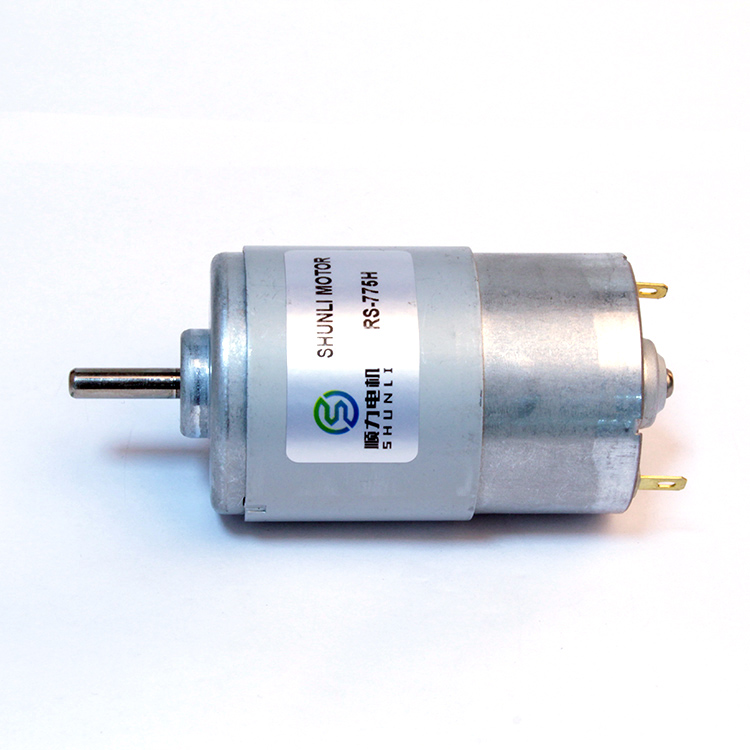

| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 / 452.9 | 13.35 | 4.07 | 245.7 / 2506 |
We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.
Yes, we can customize a suitable motor according to our customer's requirements.
Yes, we have CE, FCC, ISO, etc. If you have other certificates requirement, we can apply it for you.
We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
Please provide your basic requirements, such as nominal voltage, rated speed, rated torque, installation dimensions (shaft length, shaft diameter, outer dimensions), or standard drawings.
