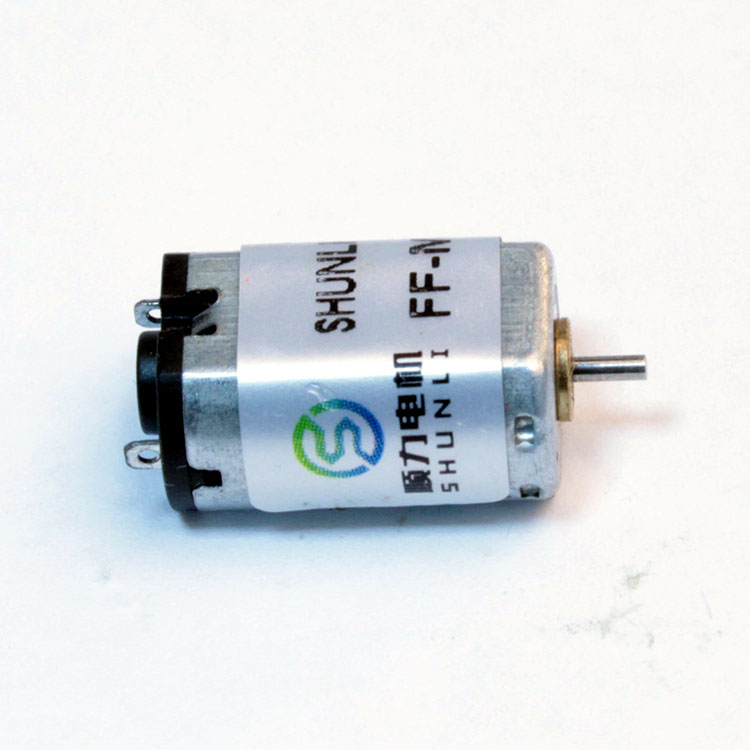

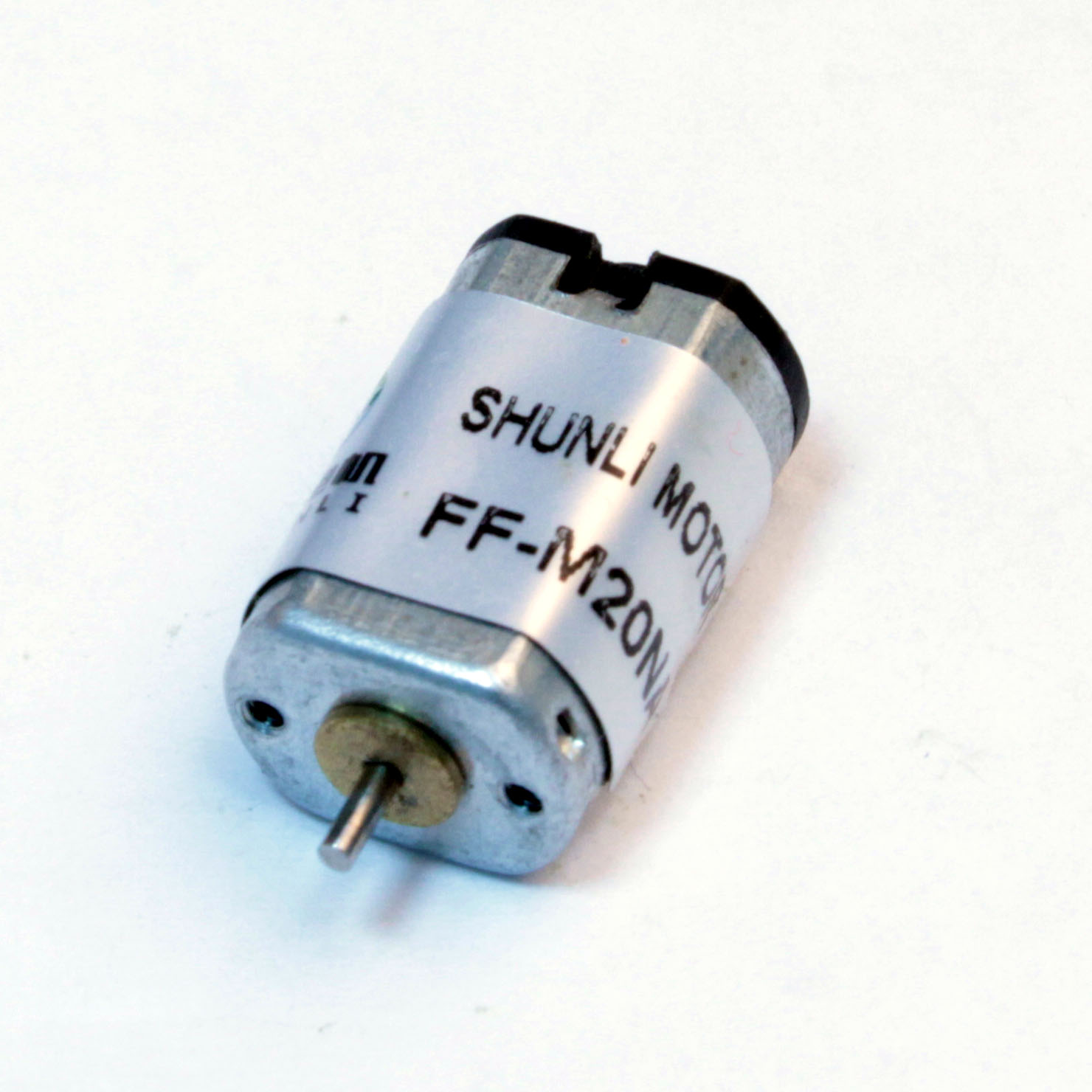

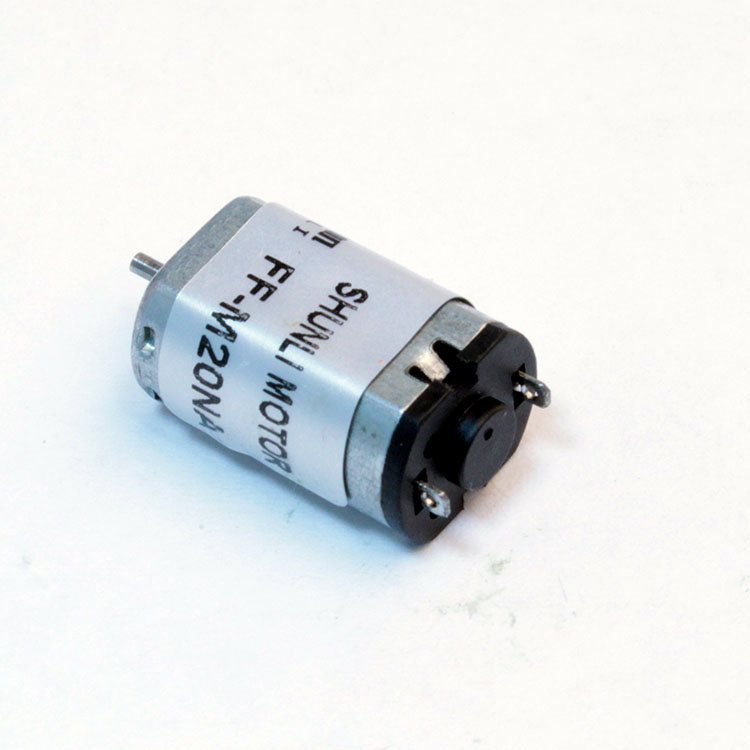

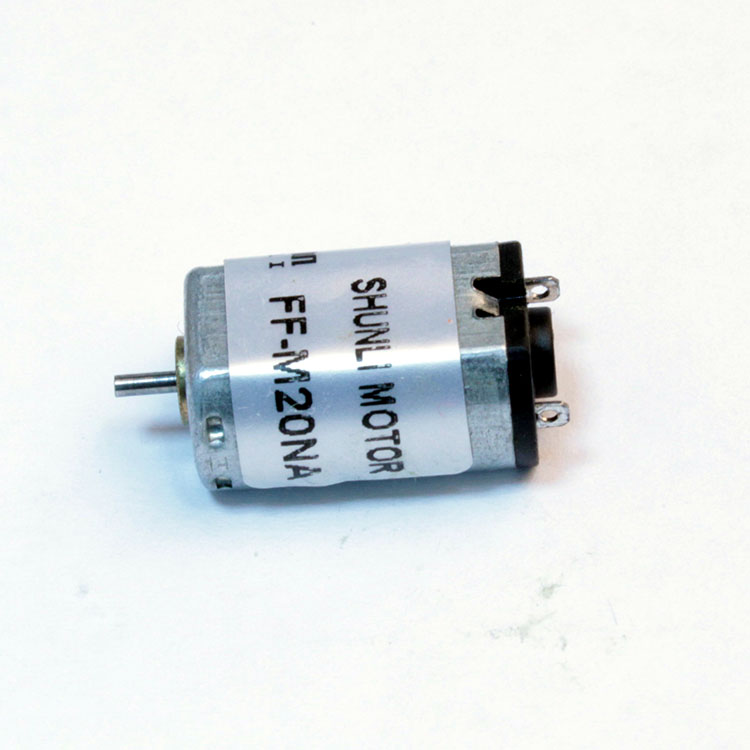

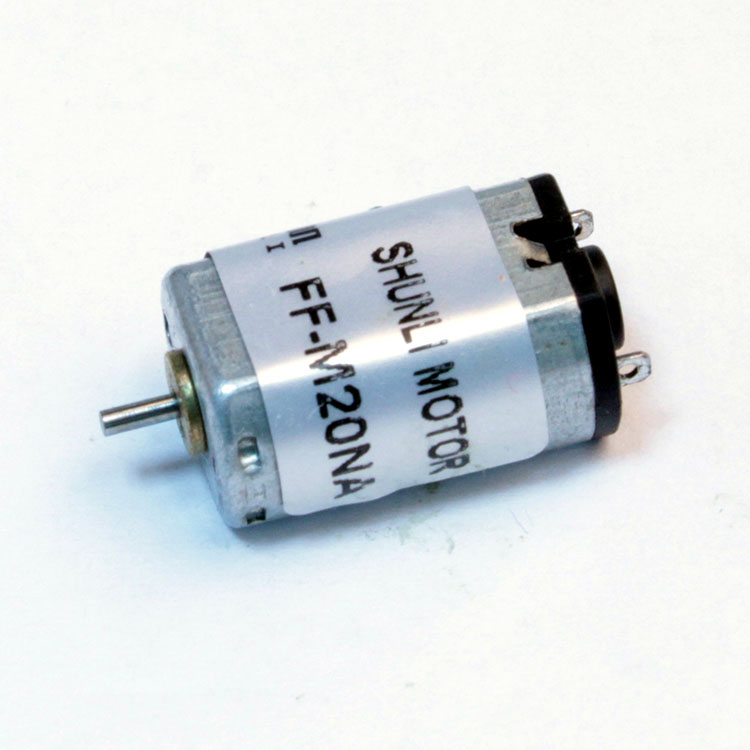

8mm *10mm M10 Toys Dc Mini Small Motor 1.5v-6v

1 / 5

8mm *10mm M10 Toys Dc Mini Small Motor 1.5v-6v

Send Inquiry

Product Description

Low noise 2.4v 3.6v dc brushed motor door lock

Promotion

Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.

Product Description

PMDC MOTOR Technical Data
PMDC MOTOR Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	mA	RPM	mA	mN.m / gf.cm	W	mA	mN.m / gf.cm
FF-M10VA	06230	2.0~5.0	4.5 VDC	23200	0.065	17500	0.14	0.098/1	0.2	0.39	0.39 / 4
FF-M10VA	09120	1.0~3.0	1.5 VDC	14000	0.12	6000	0.3	0.157/1.6	0.08	0.25	0.25 / 2.6

Click on the tilt font to know more parameters!

Application

Certifications

Why Choose Us

1. Production Capabilities

We are a factory specialize in producing motors more than 14 years, professional R&D team mature management will bring you a pleasant shopping experience.

2. Quality Control

In order to confirm quality, from we receive material to shipment to be carefully checked every step of the way. Quality is our basis of our development.

Our Services

We are gold seller and in possession of high credibility

100% on-time delivery rate confirm your product arrives timely.

Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.

Timely reply, your message will be replied within 2 hours.

Frequently Asked Questions

Are you trading company or manufacturer?

We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

What is the payment term for a new customer?

We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

I can't find a suitable motor on your website, can you customize the motor for me?

Yes, we can customize a suitable motor according to our customer's requirements.

Do you have certificates for the motors?

Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them on your behalf.

How is your Quality Control?

We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.

What details are required for a custom motor inquiry?

Please provide specifications such as voltage, rated speed, rated torque, shaft dimensions, and motor size constraints. Sharing your application scenario will also help us offer the best solution.
