BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
This motor supports multiple voltage configurations, including 12V, 18V, and 24V inputs, making it versatile for different power setups.

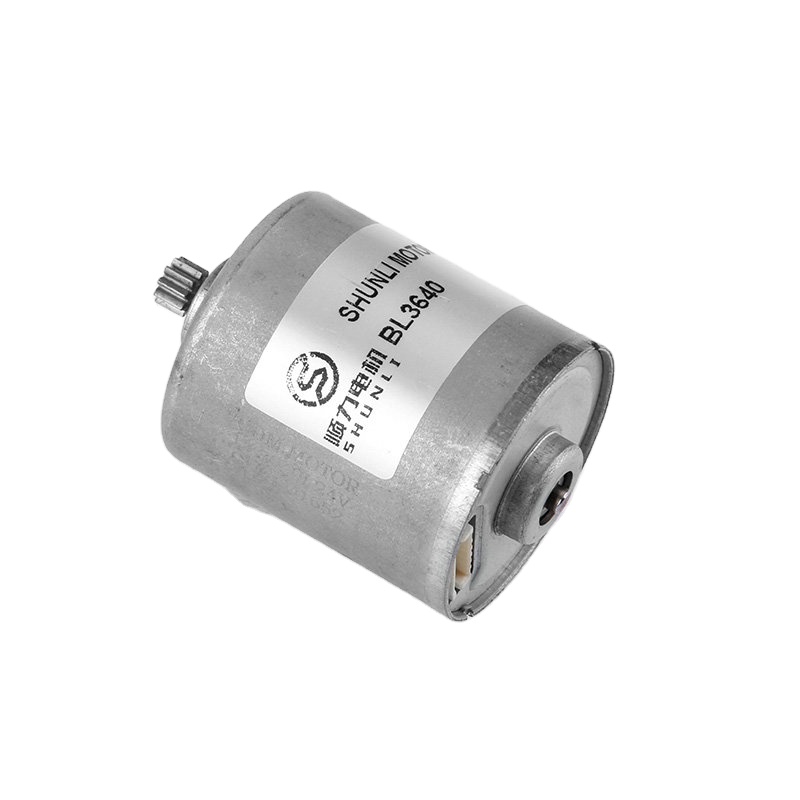

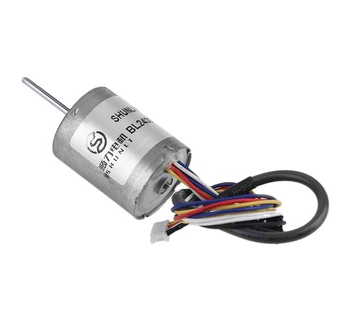

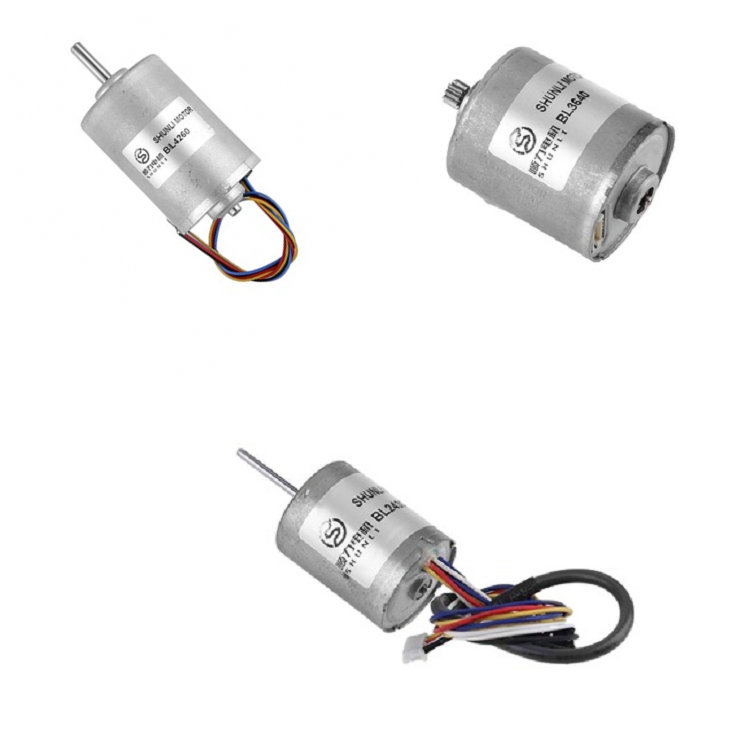

This high-speed BLDC motor is capable of reaching speeds of 20,000 RPM, 30,000 RPM, and up to 40,000 RPM depending on the voltage and load configurations.
The motor features a 5-pin termination arrangement: Pin 1 (VCC), Pin 2 (FG), Pin 3 (CW/CCW) for direction control, Pin 4 (GND), and Pin 5 (PWM) for speed modulation.
With high speed capabilities ranging from 20,000 to 40,000 RPM and torque levels of 100 to 150 G.CM, it is specifically designed for high-performance fan systems and air cooling applications.
Yes, we support customized technical specifications to meet your system's particular voltage, speed, and torque requirements. Please reach out with your requirements.
