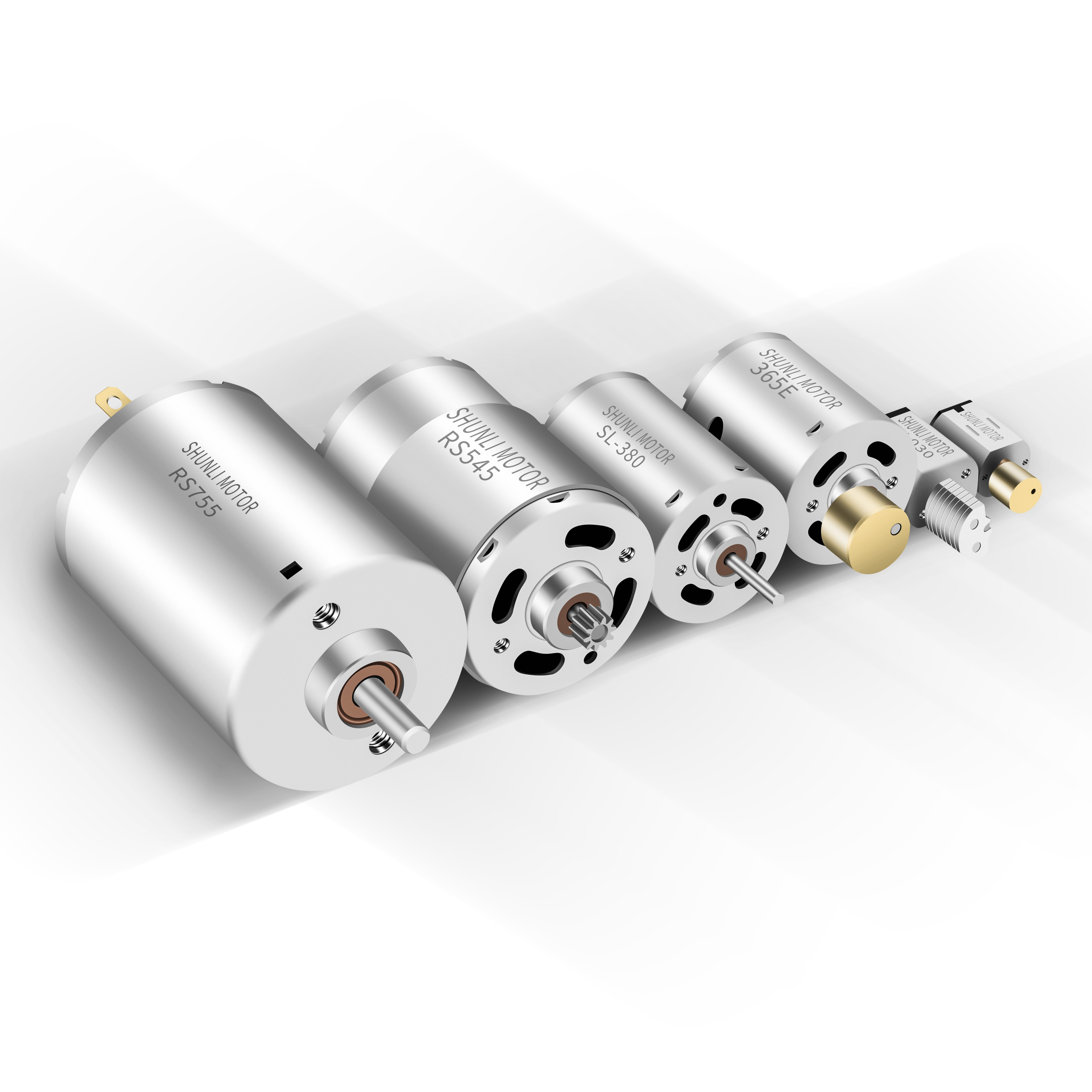

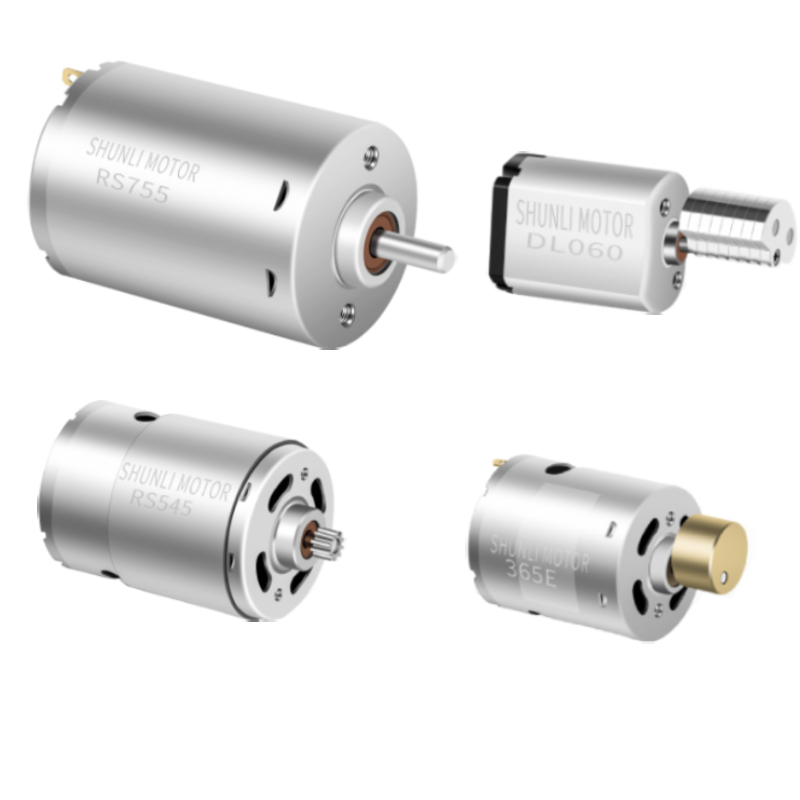

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

1 / 5

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Send Inquiry

Product Description

Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Product Details

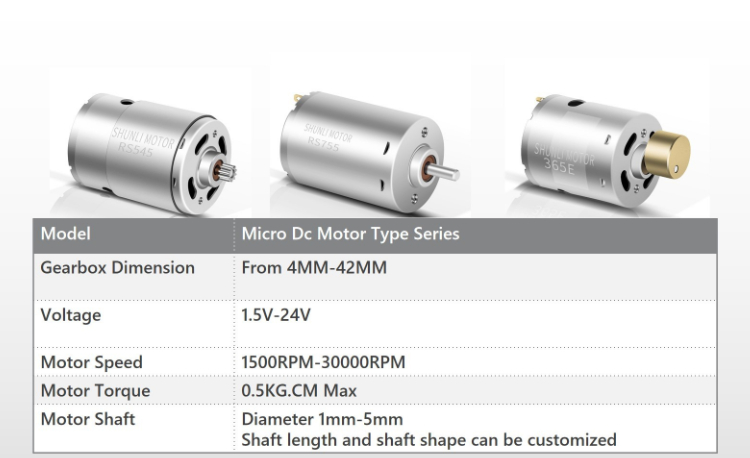

Motor Customized Specification

PMDC MOTOR Technical Data
Model		Rated Voltage(V)		No-Load		Rated
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W
RS-550H	23128R	6.0~24.0	24VDC	4500	0.1	3932	0.39	25.7/262	10.6
RS-550H	6034	6.0~12.0	12VDC	16000	1.12	13613	4.96	25.6/261.3	40.36
RS-555H	3540	6.0~12.0	12VDC	7800	0.3	6708	1.84	21.9/223.4	15.35
RS-555H	23100	6.0~24.0	24VDC	7000	0.14	6004	0.77	19.2/195.8	12.09

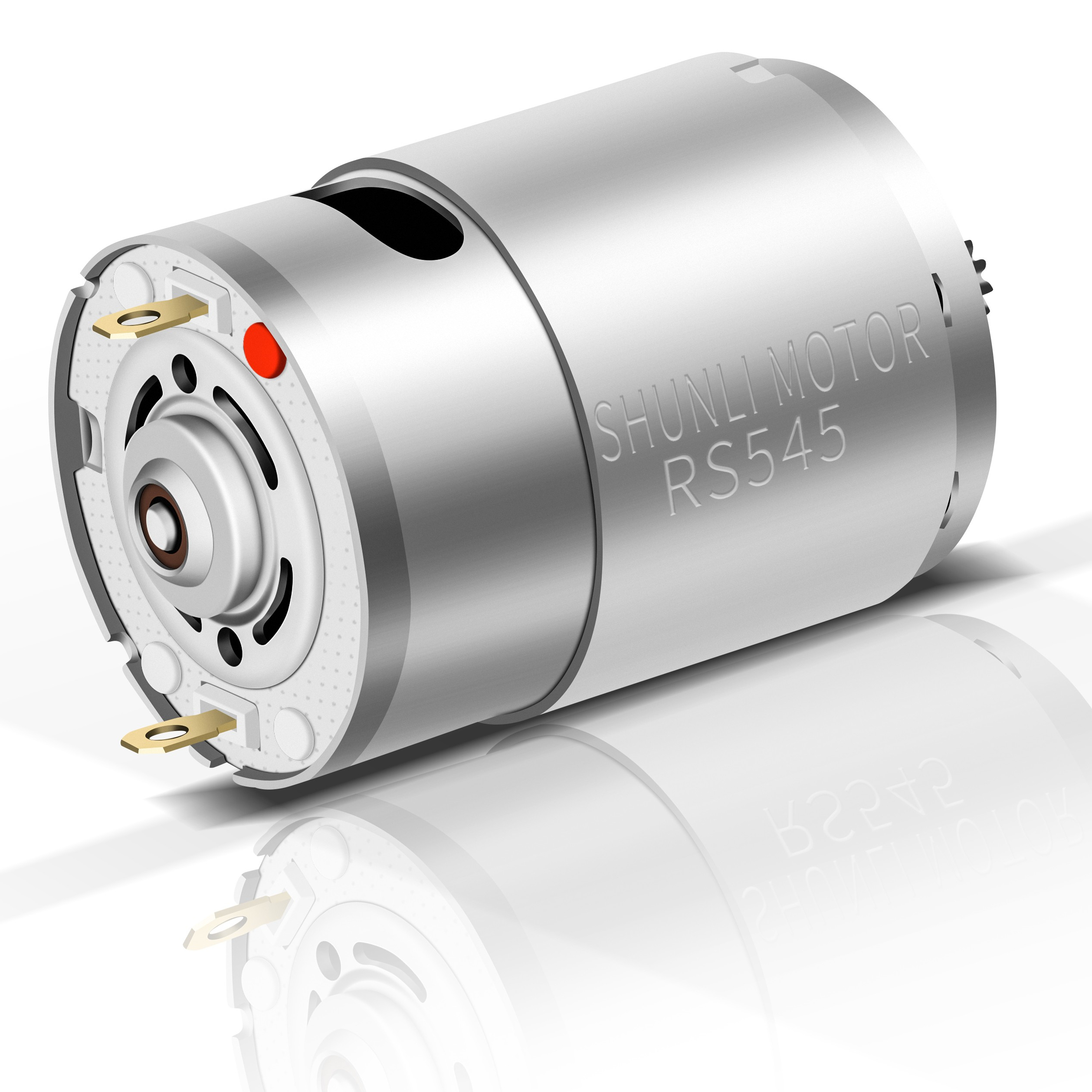

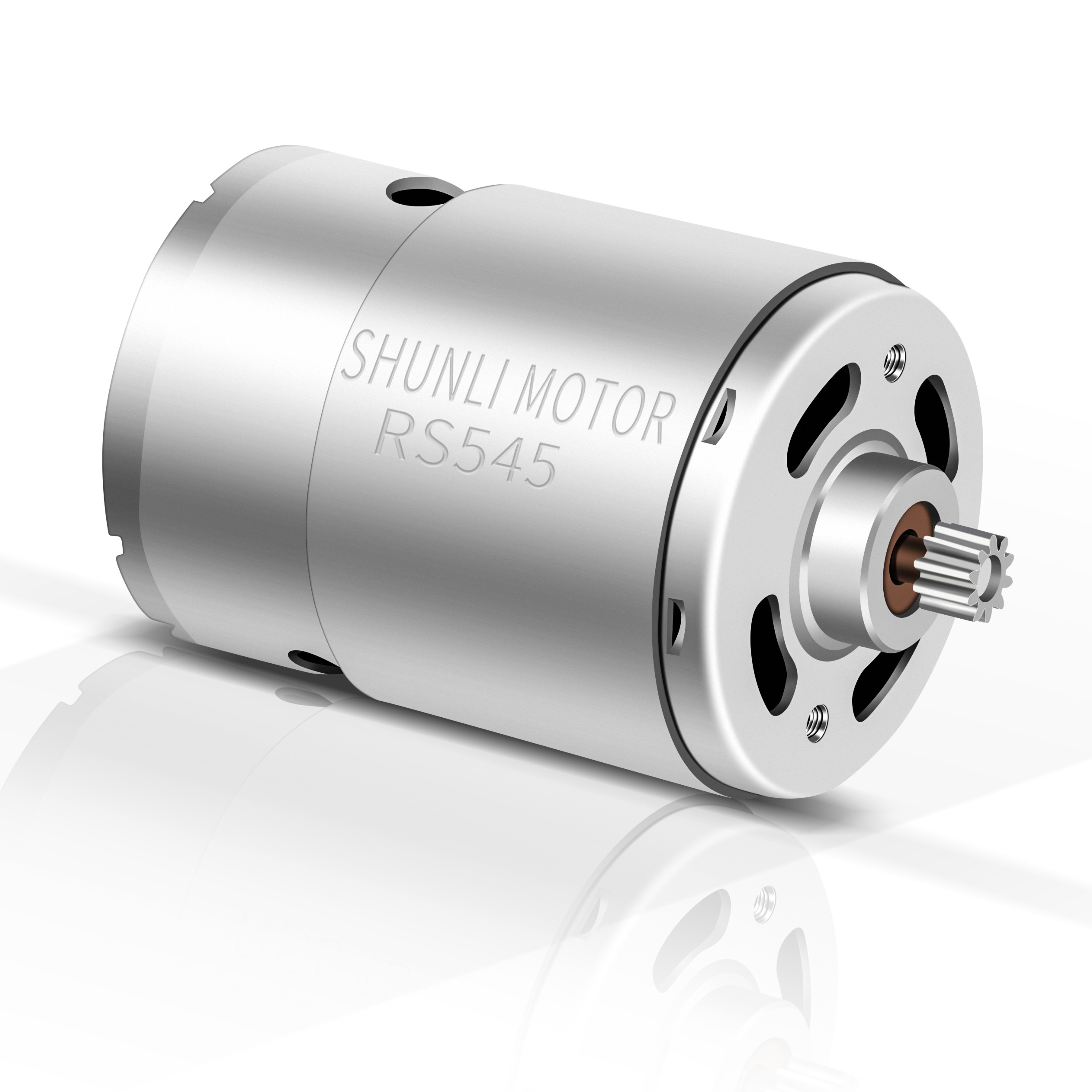

RS - 545 A

Frequently Asked Questions

What operating voltages are supported by the RS-550, RS-545, and RS-555 DC motors?

These high RPM PMDC motors support a flexible operating range typically from 6.0V to 24.0V DC, depending on the specific model configuration.

What is the maximum speed (RPM) for these PMDC motors?

The speed performance varies by configuration. For example, the RS-550H (6034) features a high no-load speed of up to 16,000 RPM at 12VDC, while other configurations can be custom-speed rated up to 15,000 RPM or 30,000 RPM.

Can the technical specifications of these DC motors be customized?

Yes, customization is available for motor specifications. Technical parameters such as nominal operating voltage, no-load speed, rated torque, power output, and shaft dimensions can be customized.

What are the rated power outputs for the RS-550H and RS-555H models?

The rated power varies per model. According to the technical data sheet: the RS-550H (6034) is rated at 40.36W, the RS-550H (23128R) at 10.6W, the RS-555H (3540) at 15.35W, and the RS-555H (23100) at 12.09W.

What are the torque specifications for these high RPM DC motors?

Under rated loads, the RS-550H (23128R) delivers 25.7 mN.m (262 gf.cm), the RS-550H (6034) delivers 25.6 mN.m (261.3 gf.cm), the RS-555H (3540) delivers 21.9 mN.m (223.4 gf.cm), and the RS-555H (23100) provides 19.2 mN.m (195.8 gf.cm).

Product Detail

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM

Product Description

Application

6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 30000RPM

Frequently Asked Questions
