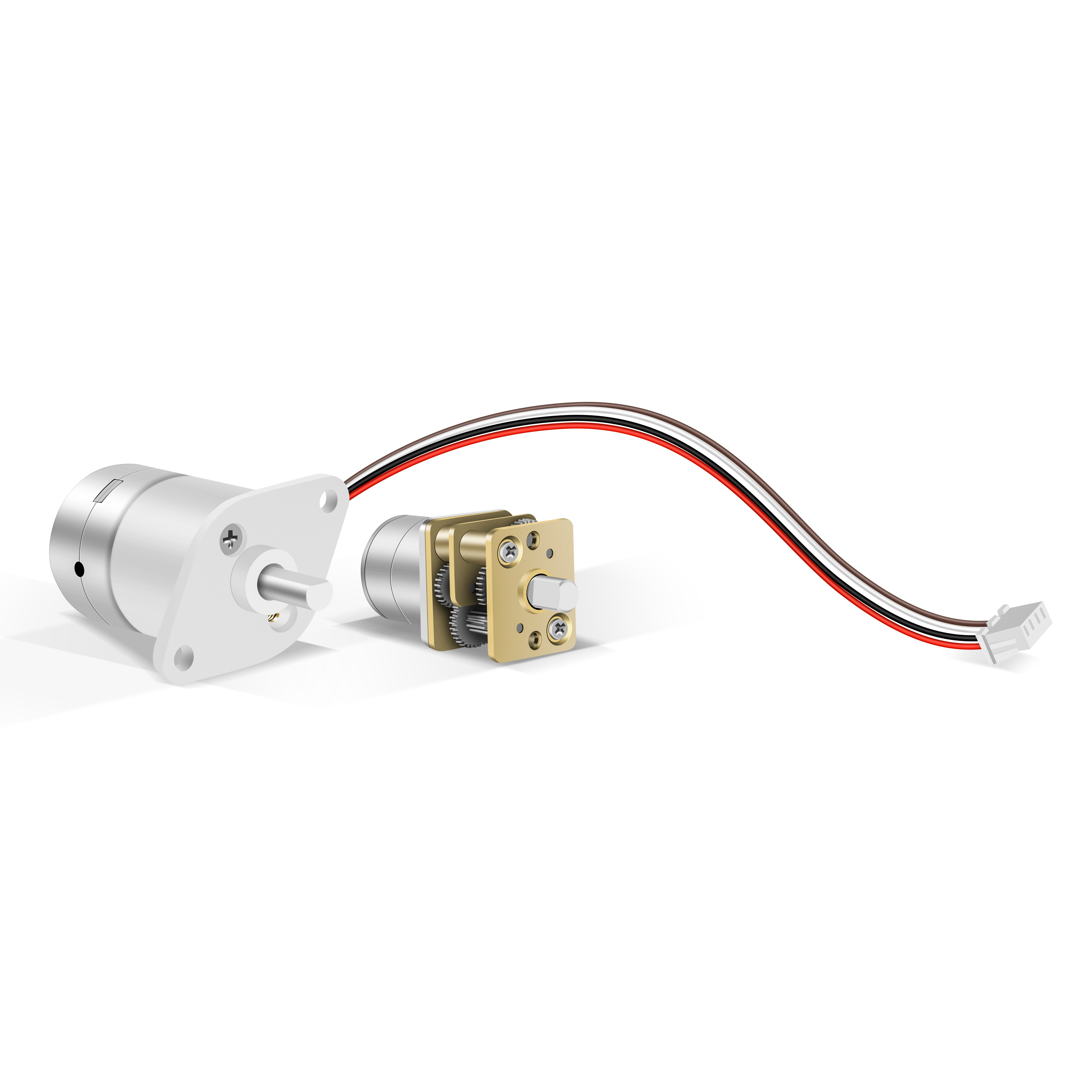

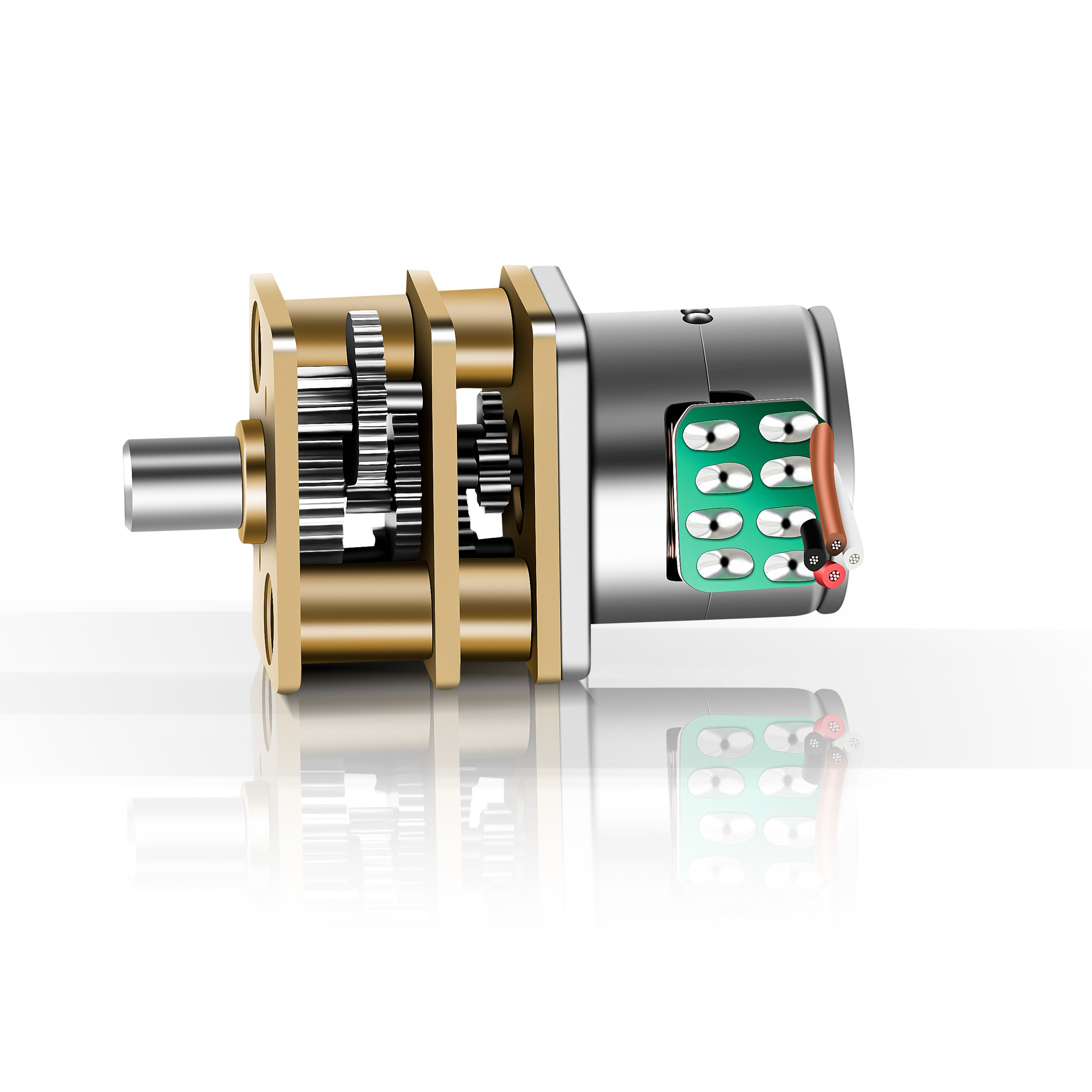

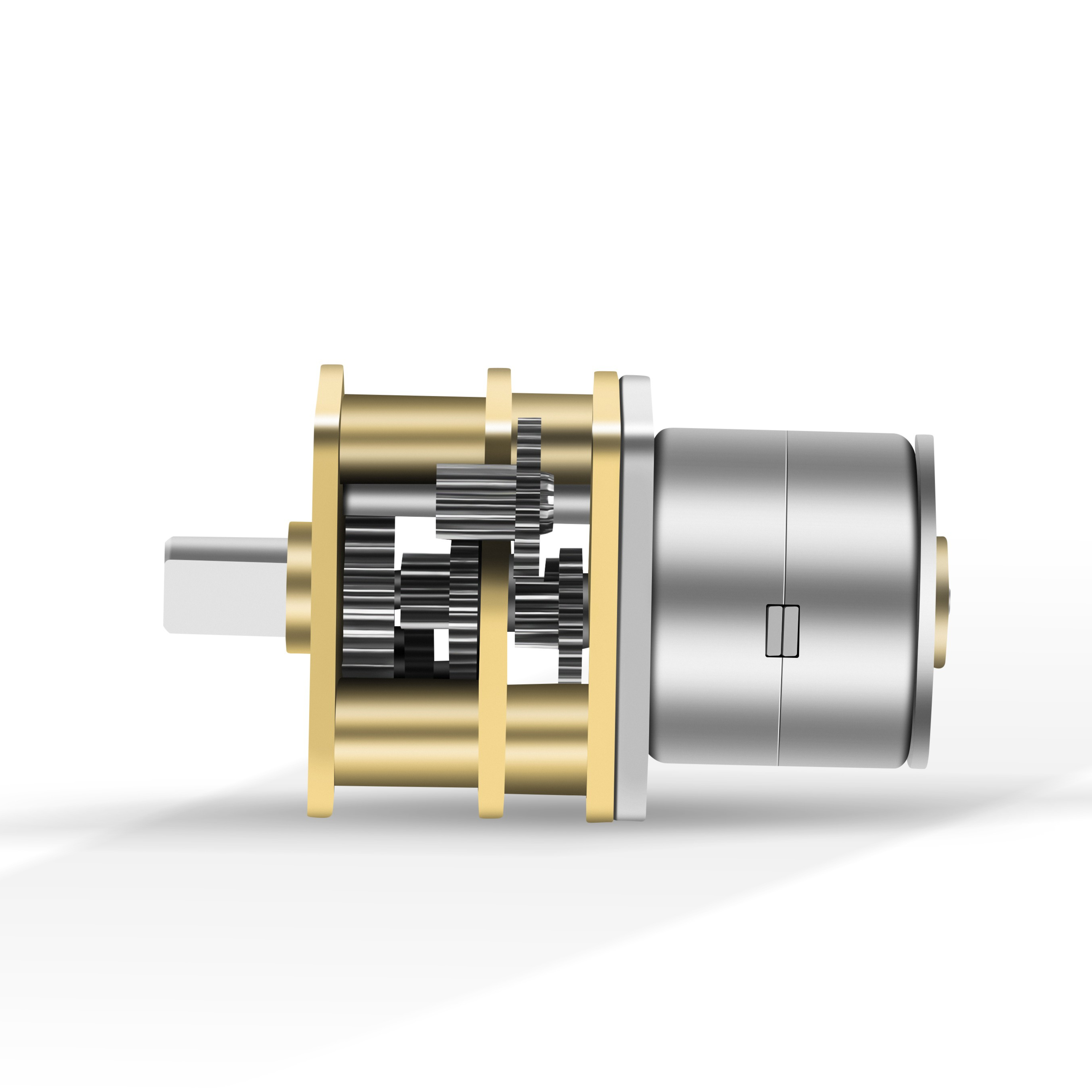

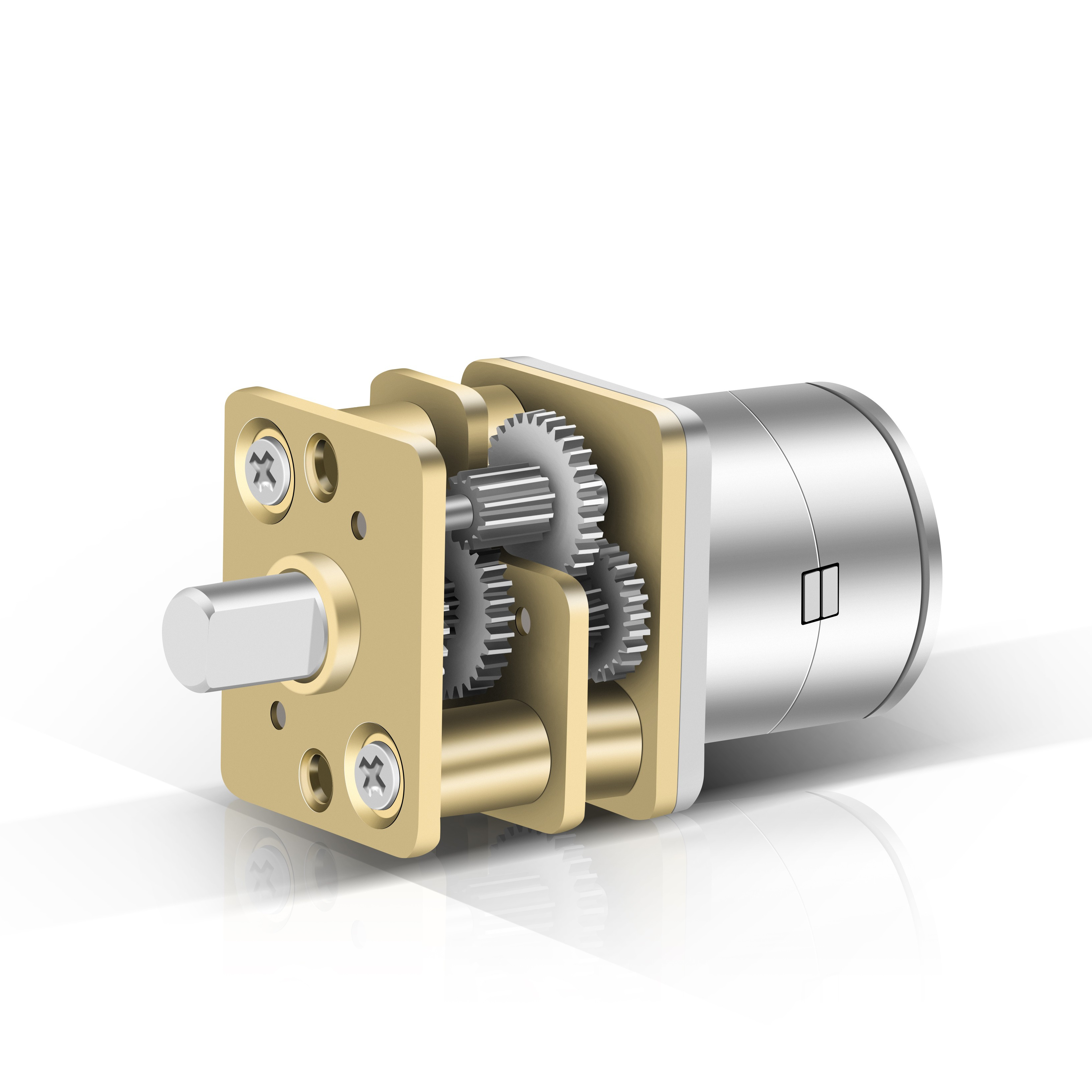

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner

Product Description

Micro DC Gear Motor Banner
Product Description
Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment

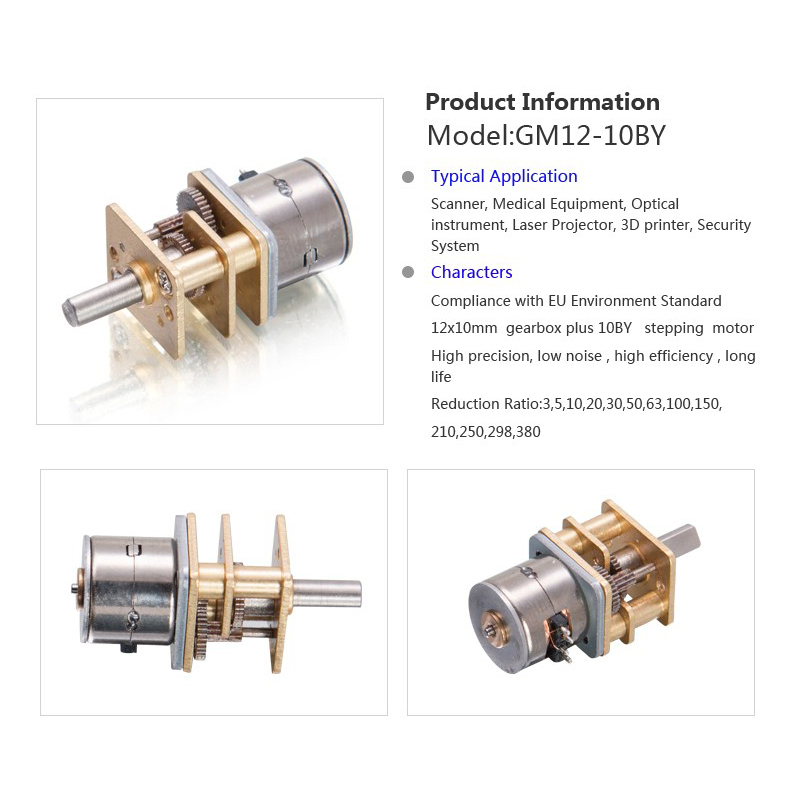

Micro DC Gear Motor
Motor Customized Specification
Reference Drawing ------ GM12-10BY
Reference Drawing GM12-10BY
Reference Datasheet
Gearbox Technical Data
Number of stages 1 2 3 4 5
Ratio 4K / 4.75K 16K / 19K / 22.6K 64K / 74K / 90K / 107K 256K / 304K / 361K / 429K / 509K 1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length "L" (mm) 13.3 16.8 20.3 23.8 27.3
Max. Rated Torque 1.0 Kgf.cm 2.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm 4.0 Kgf.cm
Max. Gear Breaked Torque 3.5 Kgf.cm 6.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm 12.5 Kgf.cm
Gearbox Efficiency 80%~90% 70%~80% 60%~70% 50%~60% 40%~50%
Gearmotor Technical Data
Gearmotor Model Ratio Rated Voltage (V) No-Load Rated Stall
Speed (RPM) Current (mA) Speed (RPM) Current (mA) Torque (N.m / Kgf.cm) Current (mA) Torque (N.m / Kgf.cm)
GMP22M130-64K 1 : 64 6 VDC 138 ≤ 160 110 ≤ 450 0.095 / 0.95 ≤ 1700 0.42 / 4.2
GMP22M180-256K 1 : 256 5 VDC 38 ≤ 180 30 ≤ 1050 0.32 / 3.2 ≤ 3900 1.25 / 12.5
Recommended Products
Recommended Micro Motors Recommended Planetary Gear Motors
Certifications
Product Certifications
Customer Evaluation
Customer Evaluation Reports
Frequently Asked Questions
Q1 Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2 What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or T/T, etc.
Q3 I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's requirements.
Q4 Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
Q5 How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we have complete quality testing equipment to test the motor, such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise Tester, etc.
Q6 What info is needed to get a custom motor quote?
Please provide your technical requirements, including voltage, speed, torque, dimensions, shaft type, and your specific application scenarios, so we can suggest the best configuration.
