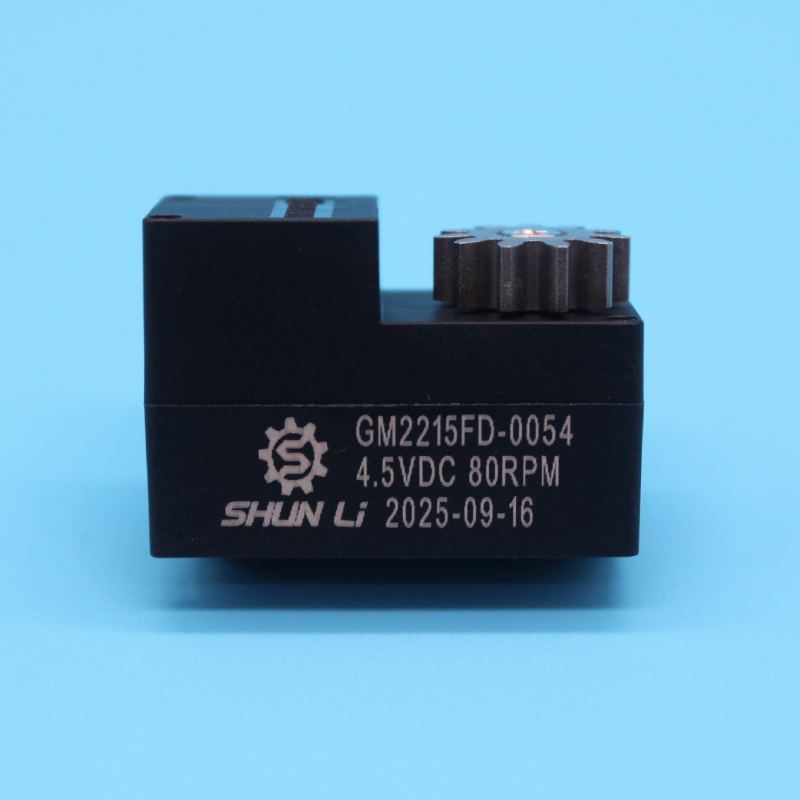

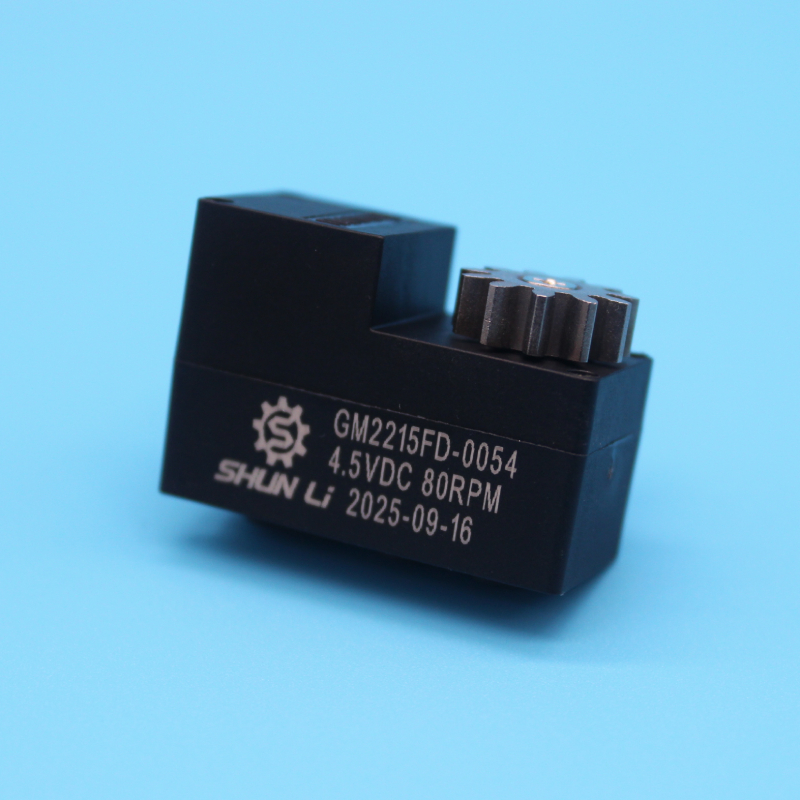

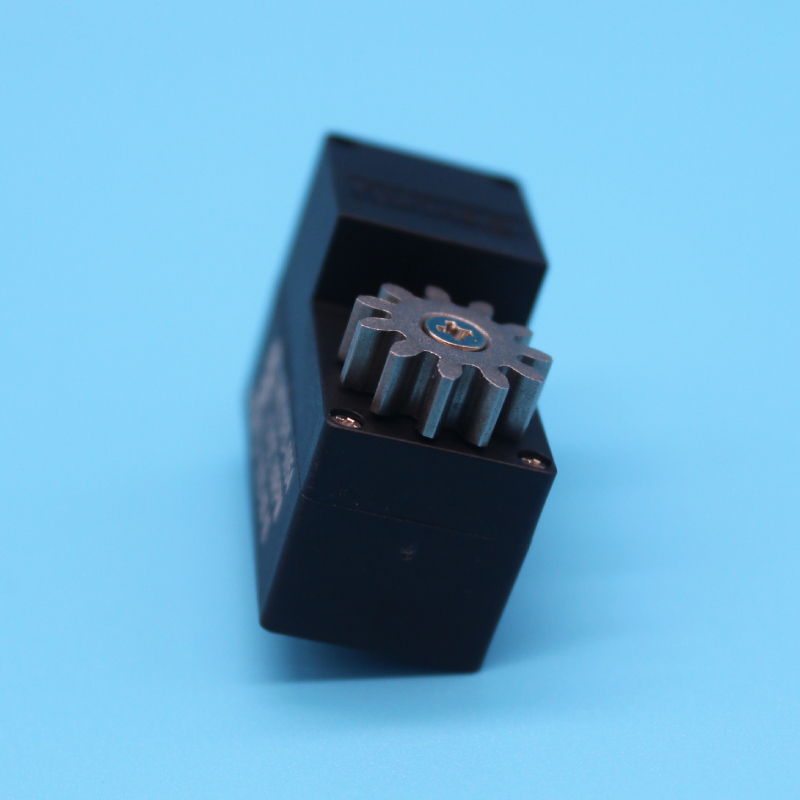

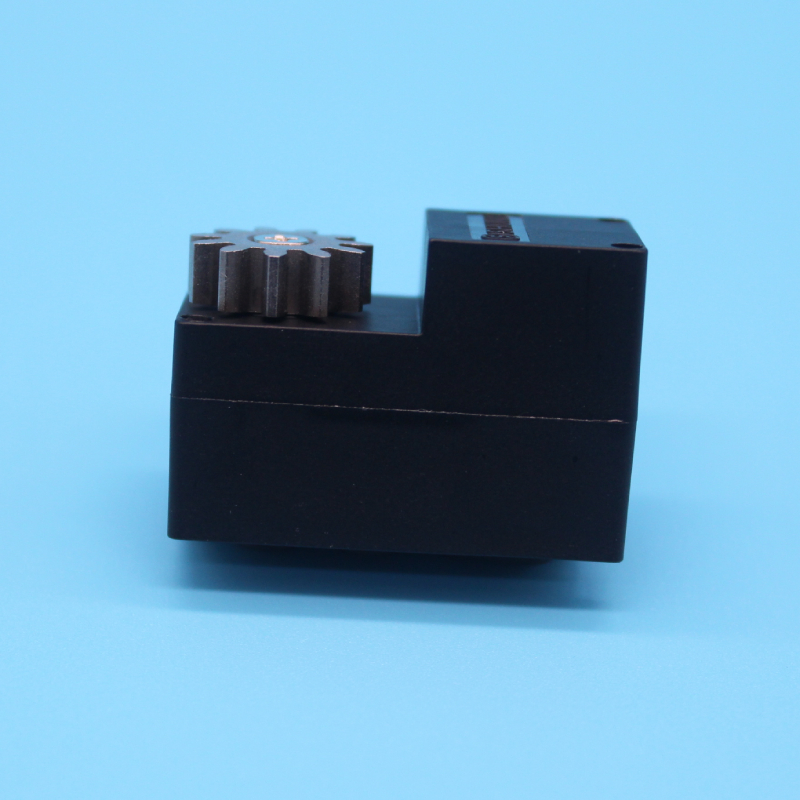

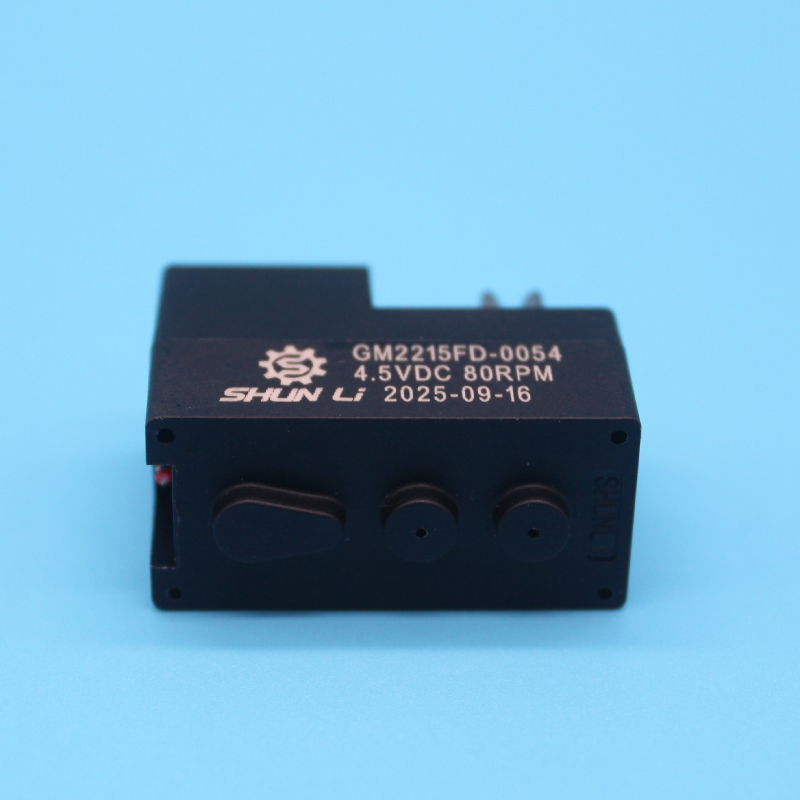

2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor
Motor Customized Specification, Please Contact Us.
| Ratio | 199K / 241K / 265K |
| Max. Rated Torque | 1.5 ~ 2.5 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
| Gearmotor Model | Ratio | Rated Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||

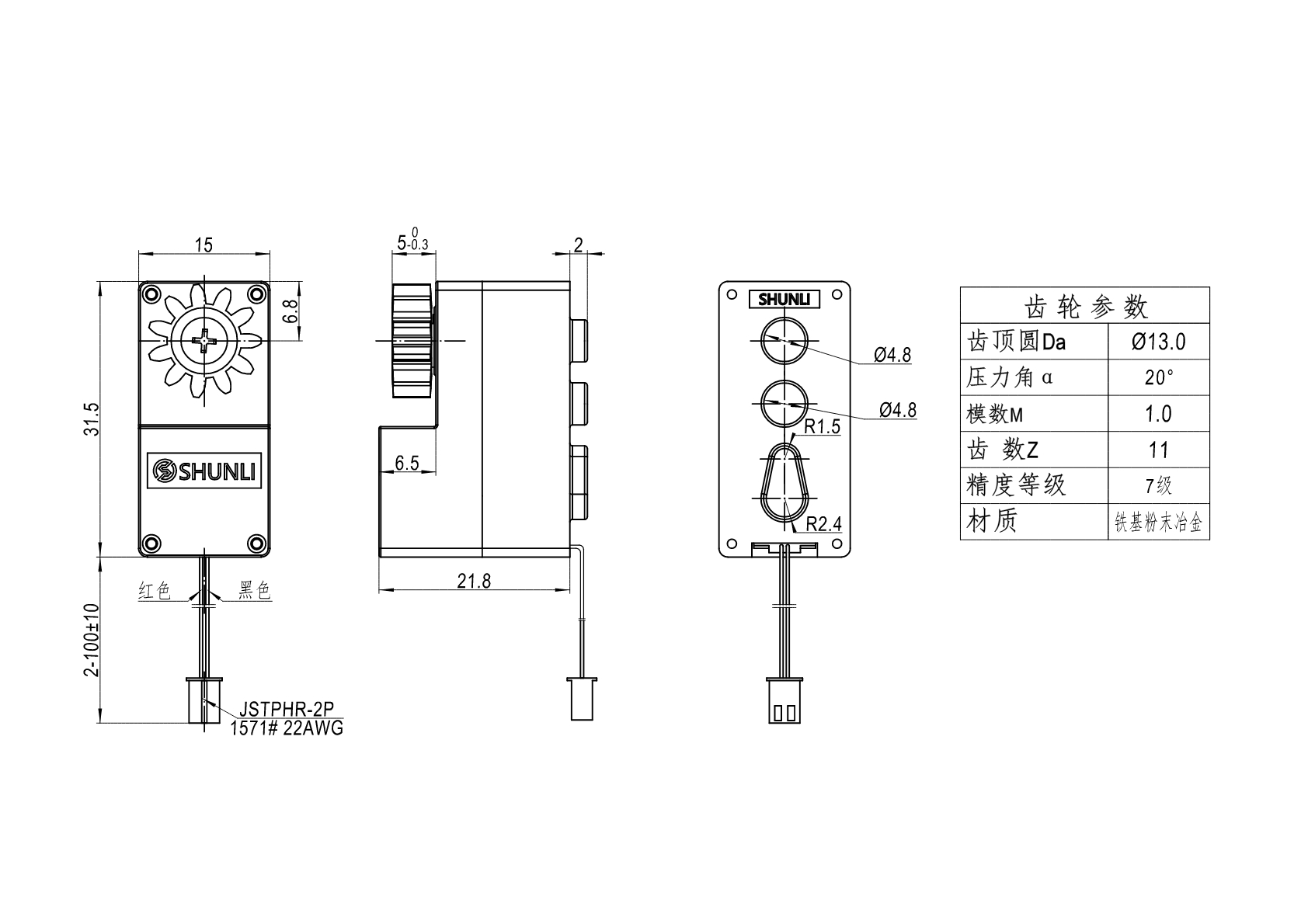

| GM2215FMN20-199K | 1 : 199 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 1.8 |
| GM2222FMN20-230K | 1 : 230 | 58 | ≤ 78 | 49 | ≤ 135 | 24 / 240 | ≤ 450 | 0.2 / 2.0 | |

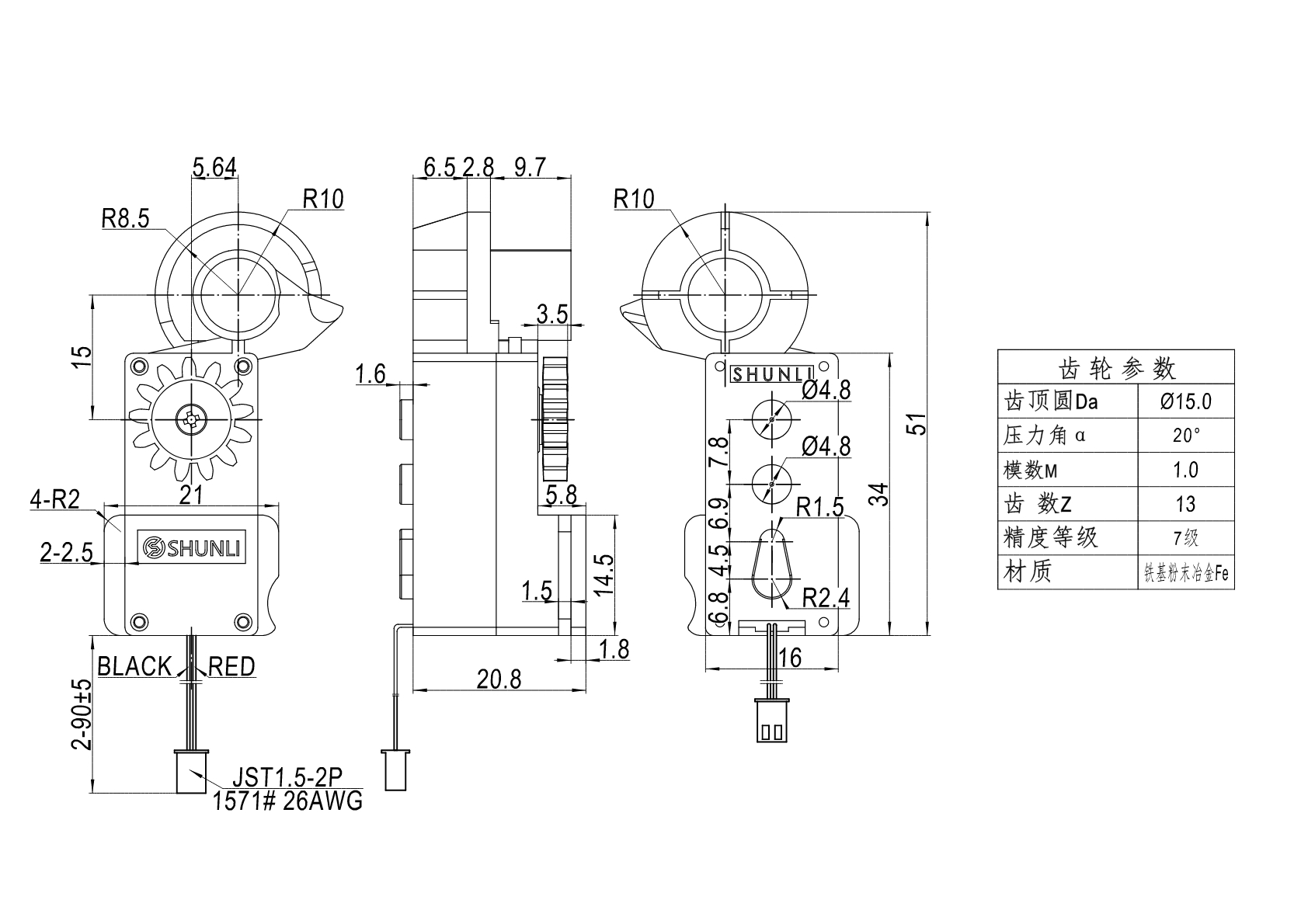

| GM2219FMN20-265K | 1 : 241 | 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 62 | ≤ 75 | 51 | ≤ 140 | 35 / 350 | ≤ 750 | 0.22 / 2.2 | |
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, T/T, etc.
Yes, we can customize a suitable motor according to our customer's specific requirements, including voltage, speed, torque, and dimension specifications.
Yes, we have CE, FCC, ISO, etc. If you have other specific certification requirements, we can apply for them for you.

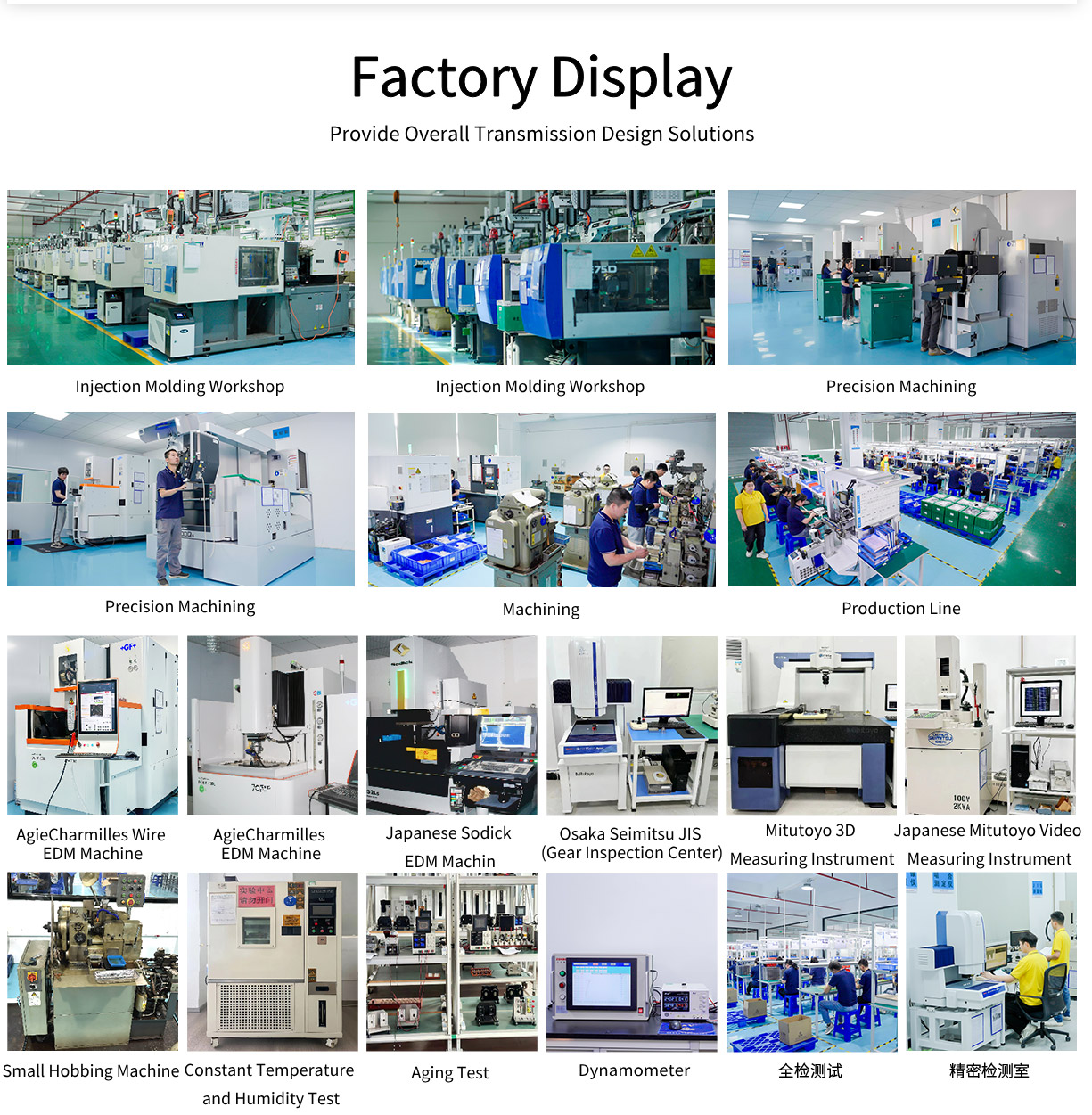

We have professional inspection staff on every production line process. After finishing the motor assembly, we use dedicated quality testing equipment to test the motors, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
Please provide your technical parameters such as rated voltage, speed, torque, load limits, gear ratio, and space constraints so that our engineers can design the optimal solution.
